Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: LineItemMeasures
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract

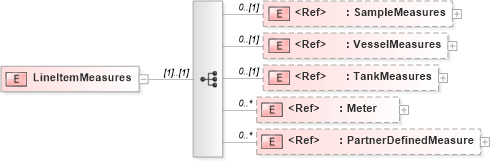

Collapse XSD Schema Diagram:
Drilldown into PartnerDefinedMeasure in schema pidxlib_xsd Drilldown into Meter in schema pidxlib_xsd Drilldown into TankMeasures in schema pidxlib_xsd Drilldown into VesselMeasures in schema pidxlib_xsd Drilldown into SampleMeasures in schema pidxlib_xsdXSD Diagram of LineItemMeasures in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="LineItemMeasures">
    <complexType>
        <sequence>
            <element ref="pidx:SampleMeasures" minOccurs="0" />
            <element ref="pidx:VesselMeasures" minOccurs="0" />
            <element ref="pidx:TankMeasures" minOccurs="0" />
            <element ref="pidx:Meter" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:PartnerDefinedMeasure" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SampleMeasures pidx:SampleMeasures 0 (1)
VesselMeasures pidx:VesselMeasures 0 (1)
TankMeasures pidx:TankMeasures 0 (1)
Meter pidx:Meter 0 unbounded
PartnerDefinedMeasure pidx:PartnerDefinedMeasure 0 unbounded
