Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: ComplexType
Name: ReceiptLineItemsType
Namespace: http://www.api.org/pidXML
Type: pidx:LineItemsType
Containing Schema: PIDXLib.xsd
Abstract
Collapse XSD Schema Diagram:

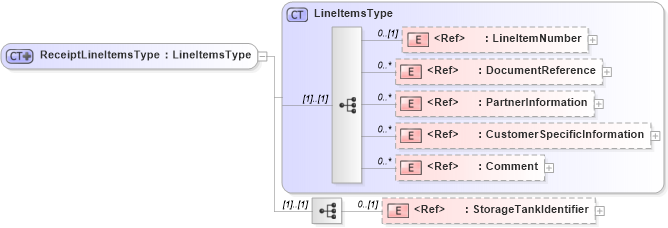

Drilldown into StorageTankIdentifier in schema pidxlib_xsd Drilldown into Comment in schema pidxlib_xsd Drilldown into CustomerSpecificInformation in schema pidxlib_xsd Drilldown into PartnerInformation in schema pidxlib_xsd Drilldown into DocumentReference in schema pidxlib_xsd Drilldown into LineItemNumber in schema pidxlib_xsd Drilldown into LineItemsType in schema pidxlib_xsdXSD Diagram of ReceiptLineItemsType in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<complexType name="ReceiptLineItemsType">
    <complexContent>
        <extension base="pidx:LineItemsType">
            <sequence>
                <element ref="pidx:StorageTankIdentifier" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineItemNumber pidx:LineItemNumber 0 (1)
DocumentReference pidx:DocumentReference 0 unbounded
PartnerInformation pidx:PartnerInformation 0 unbounded
CustomerSpecificInformation pidx:CustomerSpecificInformation 0 unbounded
Comment pidx:Comment 0 unbounded
StorageTankIdentifier pidx:StorageTankIdentifier 0 (1)
Collapse Derivation Tree:
Collapse References:
pidx:ReceiptLineItems
