Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: PartnerInformation
Namespace: http://www.api.org/pidXML
Containing Schema: PIDXLib.xsd
Abstract
Documentation:
Structure which contains the information necessary to describe a business partner.

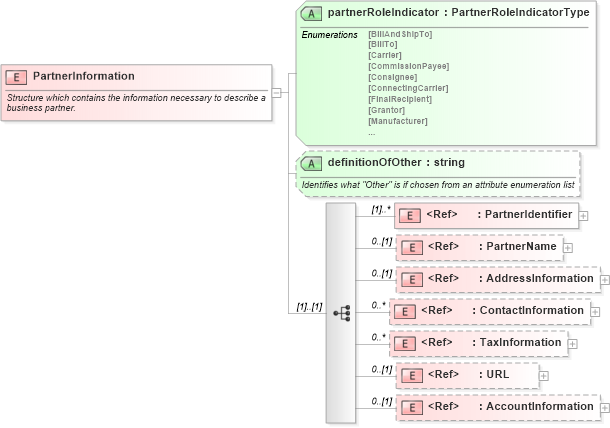

Collapse XSD Schema Diagram:
Drilldown into AccountInformation in schema pidxlib_xsd Drilldown into URL in schema pidxlib_xsd Drilldown into TaxInformation in schema pidxlib_xsd Drilldown into ContactInformation in schema pidxlib_xsd Drilldown into AddressInformation in schema pidxlib_xsd Drilldown into PartnerName in schema pidxlib_xsd Drilldown into PartnerIdentifier in schema pidxlib_xsd Drilldown into definitionOfOther in schema pidxlib_xsd Drilldown into partnerRoleIndicator in schema pidxlib_xsdXSD Diagram of PartnerInformation in schema pidxlib_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="PartnerInformation">
    <annotation>
        <documentation>Structure which contains the information necessary to describe a business partner.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="pidx:PartnerIdentifier" maxOccurs="unbounded" />
            <element ref="pidx:PartnerName" minOccurs="0" />
            <element ref="pidx:AddressInformation" minOccurs="0" />
            <element ref="pidx:ContactInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:TaxInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:URL" minOccurs="0" />
            <element ref="pidx:AccountInformation" minOccurs="0" />
        </sequence>
        <attribute name="partnerRoleIndicator" type="pidx:PartnerRoleIndicatorType" use="required" />
        <attribute name="definitionOfOther" type="string" use="optional">
            <annotation>
                <documentation>Identifies what "Other" is if chosen from an attribute enumeration list</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartnerIdentifier pidx:PartnerIdentifier (1) unbounded
PartnerName pidx:PartnerName 0 (1)
AddressInformation pidx:AddressInformation 0 (1)
ContactInformation pidx:ContactInformation 0 unbounded
TaxInformation pidx:TaxInformation 0 unbounded
URL pidx:URL 0 (1)
AccountInformation pidx:AccountInformation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
partnerRoleIndicator pidx:partnerRoleIndicator Required
definitionOfOther pidx:definitionOfOther Optional
