Documentation for PIDX - Petroleum Industry Data Exchange
Definition Type: Element
Name: RequestRequisitionReturn
Namespace: http://www.api.org/pidXML
Containing Schema: RequestRequisitionReturn.xsd
Abstract

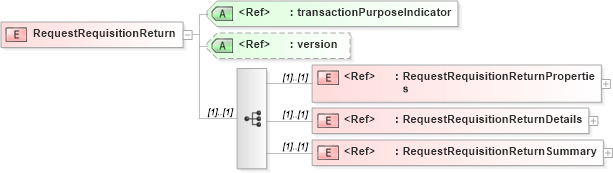

Collapse XSD Schema Diagram:
Drilldown into RequestRequisitionReturnSummary in schema requestrequisitionreturn_xsd Drilldown into RequestRequisitionReturnDetails in schema requestrequisitionreturn_xsd Drilldown into RequestRequisitionReturnProperties in schema requestrequisitionreturn_xsd Drilldown into version in schema pidxlib_xsd Drilldown into transactionPurposeIndicator in schema pidxlib_xsdXSD Diagram of RequestRequisitionReturn in schema requestrequisitionreturn_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="RequestRequisitionReturn">
    <complexType>
        <sequence>
            <element ref="pidx:RequestRequisitionReturnProperties" />
            <element ref="pidx:RequestRequisitionReturnDetails" />
            <element ref="pidx:RequestRequisitionReturnSummary" />
        </sequence>
        <attribute ref="pidx:transactionPurposeIndicator" use="required" />
        <attribute ref="pidx:version" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RequestRequisitionReturnProperties pidx:RequestRequisitionReturnProperties (1) (1)
RequestRequisitionReturnDetails pidx:RequestRequisitionReturnDetails (1) (1)
RequestRequisitionReturnSummary pidx:RequestRequisitionReturnSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
transactionPurposeIndicator pidx:transactionPurposeIndicator Required
version pidx:version Optional
