Definition Type: Element
Name: RequestRequisitionReturnProperties
Namespace: http://www.api.org/pidXML
Containing Schema: RequestRequisitionReturn.xsd
Abstract

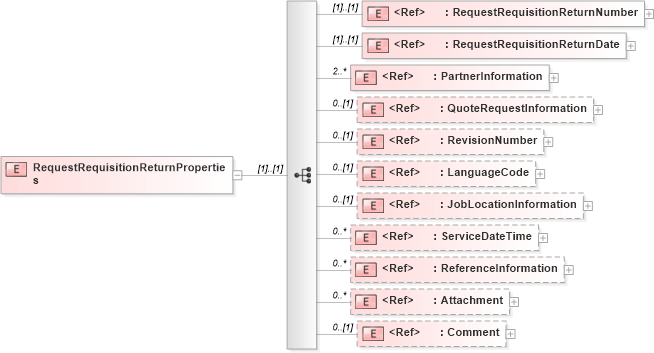

Collapse XSD Schema Diagram:
Drilldown into Comment in schema pidxlib_xsd Drilldown into Attachment in schema pidxlib_xsd Drilldown into ReferenceInformation in schema pidxlib_xsd Drilldown into ServiceDateTime in schema pidxlib_xsd Drilldown into JobLocationInformation in schema pidxlib_xsd Drilldown into LanguageCode in schema pidxlib_xsd Drilldown into RevisionNumber in schema pidxlib_xsd Drilldown into QuoteRequestInformation in schema pidxlib_xsd Drilldown into PartnerInformation in schema pidxlib_xsd Drilldown into RequestRequisitionReturnDate in schema pidxlib_xsd Drilldown into RequestRequisitionReturnNumber in schema pidxlib_xsdXSD Diagram of RequestRequisitionReturnProperties in schema requestrequisitionreturn_xsd (PIDX - Petroleum Industry Data Exchange)
Collapse XSD Schema Code:
<element name="RequestRequisitionReturnProperties">
    <complexType>
        <sequence>
            <element ref="pidx:RequestRequisitionReturnNumber" />
            <element ref="pidx:RequestRequisitionReturnDate" />
            <element ref="pidx:PartnerInformation" minOccurs="2" maxOccurs="unbounded" />
            <element ref="pidx:QuoteRequestInformation" minOccurs="0" />
            <element ref="pidx:RevisionNumber" minOccurs="0" />
            <element ref="pidx:LanguageCode" minOccurs="0" />
            <element ref="pidx:JobLocationInformation" minOccurs="0" />
            <element ref="pidx:ServiceDateTime" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Attachment" minOccurs="0" maxOccurs="unbounded" />
            <element ref="pidx:Comment" minOccurs="0" />
        </sequence>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RequestRequisitionReturnNumber pidx:RequestRequisitionReturnNumber (1) (1)
RequestRequisitionReturnDate pidx:RequestRequisitionReturnDate (1) (1)
PartnerInformation pidx:PartnerInformation 2 unbounded
QuoteRequestInformation pidx:QuoteRequestInformation 0 (1)
RevisionNumber pidx:RevisionNumber 0 (1)
LanguageCode pidx:LanguageCode 0 (1)
JobLocationInformation pidx:JobLocationInformation 0 (1)
ServiceDateTime pidx:ServiceDateTime 0 unbounded
ReferenceInformation pidx:ReferenceInformation 0 unbounded
Attachment pidx:Attachment 0 unbounded
Comment pidx:Comment 0 (1)
