Documentation for Really Simple Syndication (RSS)
Definition Type: Element
Name: channel
Type: tRssChannel
Containing Schema: rss-2_0_1-rev9.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

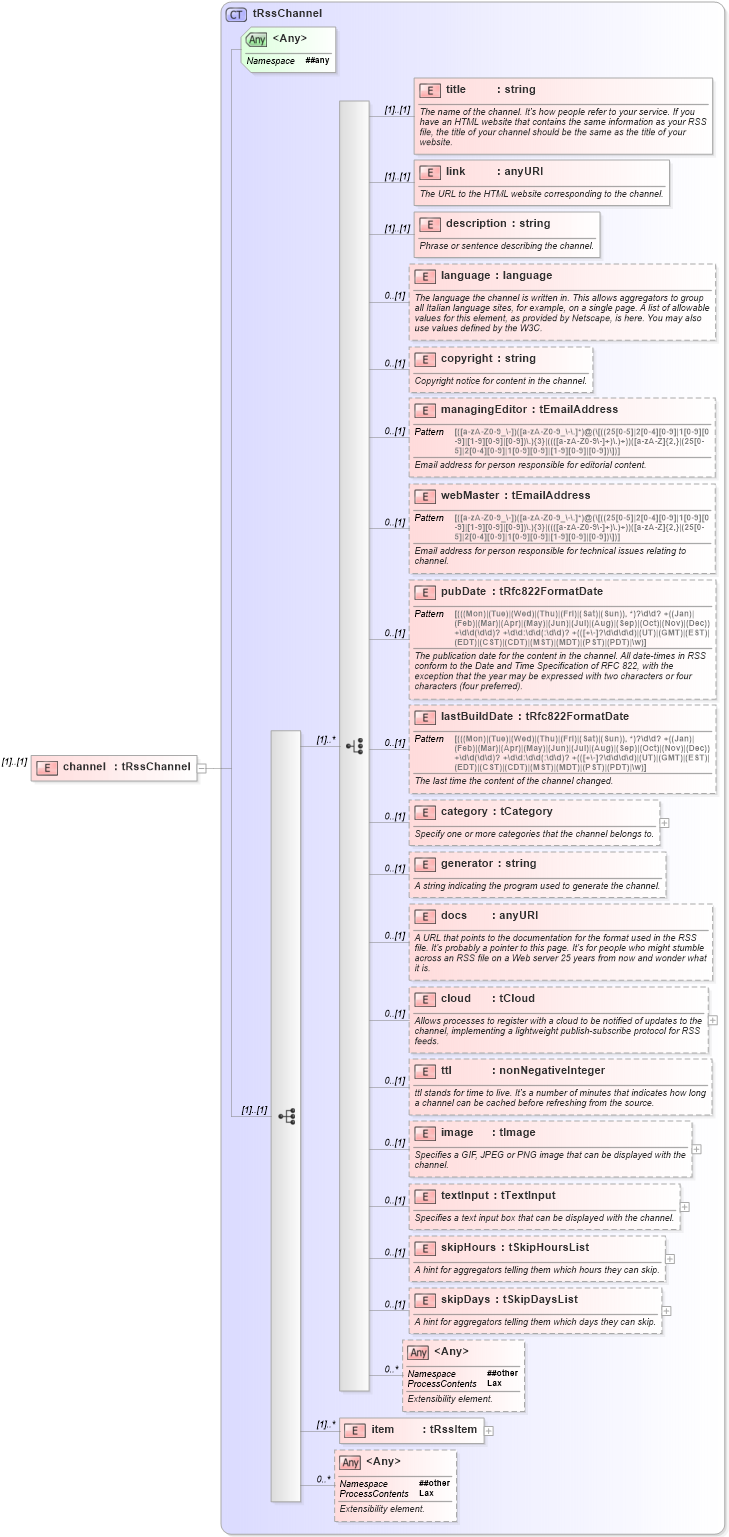

Collapse XSD Schema Diagram:
Drilldown into item in schema rss-2_0_1-rev9_xsd Drilldown into skipDays in schema rss-2_0_1-rev9_xsd Drilldown into skipHours in schema rss-2_0_1-rev9_xsd Drilldown into textInput in schema rss-2_0_1-rev9_xsd Drilldown into image in schema rss-2_0_1-rev9_xsd Drilldown into ttl in schema rss-2_0_1-rev9_xsd Drilldown into cloud in schema rss-2_0_1-rev9_xsd Drilldown into docs in schema rss-2_0_1-rev9_xsd Drilldown into generator in schema rss-2_0_1-rev9_xsd Drilldown into category in schema rss-2_0_1-rev9_xsd Drilldown into lastBuildDate in schema rss-2_0_1-rev9_xsd Drilldown into pubDate in schema rss-2_0_1-rev9_xsd Drilldown into webMaster in schema rss-2_0_1-rev9_xsd Drilldown into managingEditor in schema rss-2_0_1-rev9_xsd Drilldown into copyright in schema rss-2_0_1-rev9_xsd Drilldown into language in schema rss-2_0_1-rev9_xsd Drilldown into description in schema rss-2_0_1-rev9_xsd Drilldown into link in schema rss-2_0_1-rev9_xsd Drilldown into title in schema rss-2_0_1-rev9_xsd Drilldown into tRssChannel in schema rss-2_0_1-rev9_xsdXSD Diagram of channel in schema rss-2_0_1-rev9_xsd (Really Simple Syndication (RSS))
Collapse XSD Schema Code:
<xs:element name="channel" type="tRssChannel" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title title (1) (1)
link link (1) (1)
description description (1) (1)
language language 0 (1)
copyright copyright 0 (1)
managingEditor managingEditor 0 (1)
webMaster webMaster 0 (1)
pubDate pubDate 0 (1)
lastBuildDate lastBuildDate 0 (1)
category category 0 (1)
generator generator 0 (1)
docs docs 0 (1)
cloud cloud 0 (1)
ttl ttl 0 (1)
image image 0 (1)
textInput textInput 0 (1)
skipHours skipHours 0 (1)
skipDays skipDays 0 (1)
item item (1) unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##any'
Collapse Derivation Tree:
