Documentation for Really Simple Syndication (RSS)
Definition Type: ComplexType
Name: tRss
Containing Schema: rss-2_0_1-rev9.xsd
Abstract

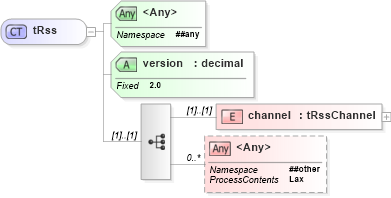

Collapse XSD Schema Diagram:
Drilldown into channel in schema rss-2_0_1-rev9_xsd Drilldown into version in schema rss-2_0_1-rev9_xsdXSD Diagram of tRss in schema rss-2_0_1-rev9_xsd (Really Simple Syndication (RSS))
Collapse XSD Schema Code:
<xs:complexType name="tRss">
    <xs:sequence>
        <xs:element name="channel" type="tRssChannel" />
        <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="version" type="xs:decimal" use="required" fixed="2.0" />
    <xs:anyAttribute namespace="##any" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
channel channel (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
version version Required
<anyAttribute> Allowed namespace: '##any'
Collapse Derivation Tree:
Collapse References:
rss
