Documentation for W3C XML Schema Definition Language
Definition Type: Group
Name: complexTypeModel
Namespace: http://www.w3.org/2001/XMLSchema
Containing Schema: XMLSchema.xsd

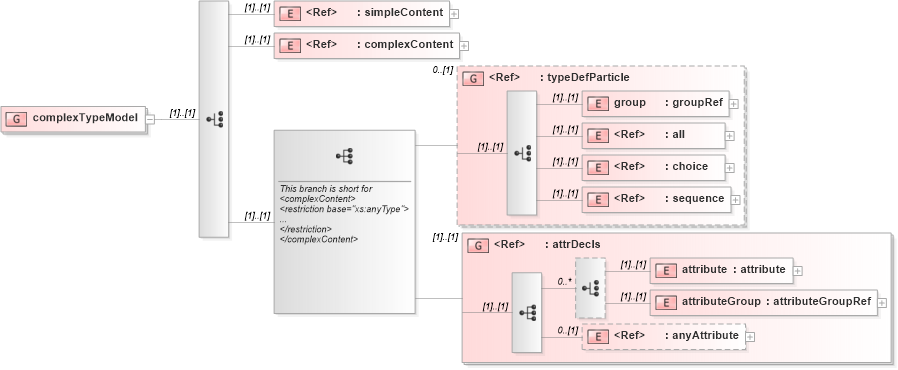

Collapse XSD Schema Diagram:
Drilldown into anyAttribute in schema xmlschema_xsd Drilldown into attributeGroup in schema xmlschema_xsd Drilldown into attribute in schema xmlschema_xsd Drilldown into attrDecls in schema xmlschema_xsd Drilldown into sequence in schema xmlschema_xsd Drilldown into choice in schema xmlschema_xsd Drilldown into all in schema xmlschema_xsd Drilldown into group in schema xmlschema_xsd Drilldown into typeDefParticle in schema xmlschema_xsd Drilldown into complexContent in schema xmlschema_xsd Drilldown into simpleContent in schema xmlschema_xsdXSD Diagram of complexTypeModel in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:group name="complexTypeModel">
    <xs:choice>
        <xs:element ref="xs:simpleContent" />
        <xs:element ref="xs:complexContent" />
        <xs:sequence>
            <xs:annotation>
                <xs:documentation>
   This branch is short for
   &lt;complexContent&gt;
   &lt;restriction base="xs:anyType"&gt;
   ...
   &lt;/restriction&gt;
   &lt;/complexContent&gt;</xs:documentation>
            </xs:annotation>
            <xs:group ref="xs:typeDefParticle" minOccurs="0" />
            <xs:group ref="xs:attrDecls" />
        </xs:sequence>
    </xs:choice>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
simpleContent xs:simpleContent (1) (1)
complexContent xs:complexContent (1) (1)
group xs:group (1) (1)
all xs:all (1) (1)
choice xs:choice (1) (1)
sequence xs:sequence (1) (1)
attribute xs:attribute (1) (1)
attributeGroup xs:attributeGroup (1) (1)
anyAttribute xs:anyAttribute 0 (1)
<xs:group> xs:typeDefParticle 0 (1)
<xs:group> xs:attrDecls (1) (1)
