Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: sequence
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:explicitGroup
Containing Schema: XMLSchema.xsd
Abstract

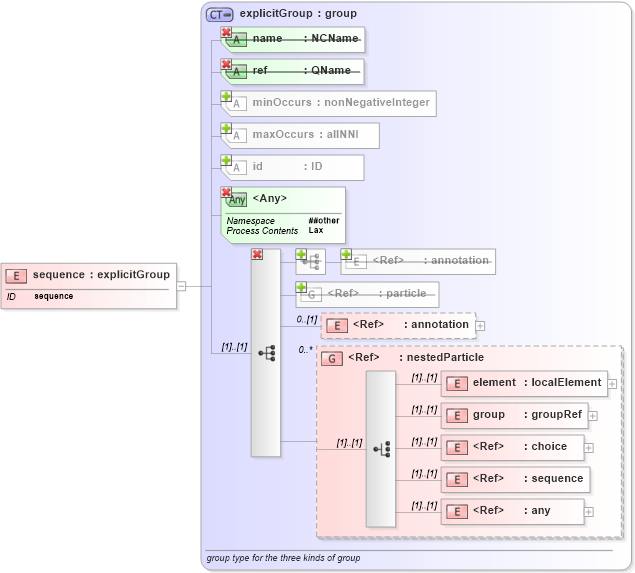

Collapse XSD Schema Diagram:
Drilldown into any in schema xmlschema_xsd Drilldown into sequence in schema xmlschema_xsd Drilldown into choice in schema xmlschema_xsd Drilldown into group in schema xmlschema_xsd Drilldown into element in schema xmlschema_xsd Drilldown into nestedParticle in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into particle in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into maxOccurs in schema xmlschema_xsd Drilldown into minOccurs in schema xmlschema_xsd Drilldown into ref in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into explicitGroup in schema xmlschema_xsdXSD Diagram of sequence in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="sequence" type="xs:explicitGroup" id="sequence">
    <xs:annotation>
        <xs:documentation source="http://www.w3.org/TR/xmlschema-1/#element-sequence" />
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
element xs:element (1) (1)
group xs:group (1) (1)
all xs:all (1) (1)
choice xs:choice (1) (1)
sequence xs:sequence (1) (1)
any xs:any (1) (1)
annotation xs:annotation 0 (1)
element xs:element (1) (1)
group xs:group (1) (1)
choice xs:choice (1) (1)
sequence xs:sequence (1) (1)
any xs:any (1) (1)
<xs:group> xs:nestedParticle 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
minOccurs xs:minOccurs 1 Optional
maxOccurs xs:maxOccurs 1 Optional
name xs:name Prohibited
ref xs:ref Prohibited
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
