Documentation for W3C XML Schema Definition Language
Definition Type: ComplexType
Name: localSimpleType
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:simpleType
Containing Schema: XMLSchema.xsd
Abstract

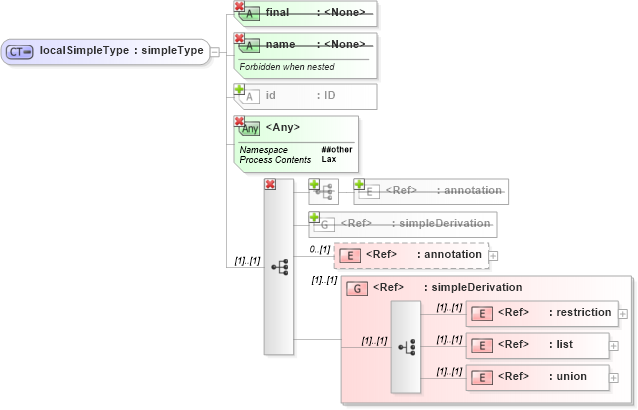

Collapse XSD Schema Diagram:
Drilldown into union in schema xmlschema_xsd Drilldown into list in schema xmlschema_xsd Drilldown into restriction in schema xmlschema_xsd Drilldown into simpleDerivation in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into simpleDerivation in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into final in schema xmlschema_xsdXSD Diagram of localSimpleType in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:complexType name="localSimpleType">
    <xs:complexContent>
        <xs:restriction base="xs:simpleType">
            <xs:sequence>
                <xs:element ref="xs:annotation" minOccurs="0" />
                <xs:group ref="xs:simpleDerivation" />
            </xs:sequence>
            <xs:attribute name="name" use="prohibited">
                <xs:annotation>
                    <xs:documentation>
              Forbidden when nested
            </xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="final" use="prohibited" />
            <xs:anyAttribute namespace="##other" processContents="lax" />
        </xs:restriction>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
restriction xs:restriction (1) (1)
list xs:list (1) (1)
union xs:union (1) (1)
annotation xs:annotation 0 (1)
<xs:group> xs:simpleDerivation (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
name xs:name Prohibited
final xs:final Prohibited
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xs:simpleType, xs:simpleType, xs:simpleTypexs:simpleType, xs:simpleType, xs:simpleType, xs:simpleType, xs:simpleType, xs:simpleType,
