Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: CriminalConviction_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

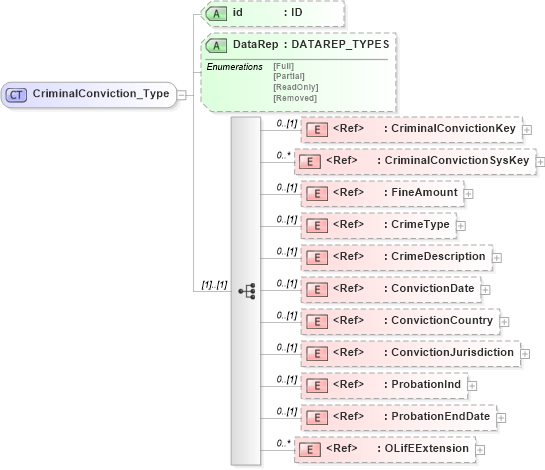

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into ProbationEndDate in schema xmlife2_20_01_xsd Drilldown into ProbationInd in schema xmlife2_20_01_xsd Drilldown into ConvictionJurisdiction in schema xmlife2_20_01_xsd Drilldown into ConvictionCountry in schema xmlife2_20_01_xsd Drilldown into ConvictionDate in schema xmlife2_20_01_xsd Drilldown into CrimeDescription in schema xmlife2_20_01_xsd Drilldown into CrimeType in schema xmlife2_20_01_xsd Drilldown into FineAmount in schema xmlife2_20_01_xsd Drilldown into CriminalConvictionSysKey in schema xmlife2_20_01_xsd Drilldown into CriminalConvictionKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of CriminalConviction_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="CriminalConviction_Type">
    <xsd:sequence>
        <xsd:element ref="CriminalConvictionKey" minOccurs="0" />
        <xsd:element ref="CriminalConvictionSysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FineAmount" minOccurs="0" />
        <xsd:element ref="CrimeType" minOccurs="0" />
        <xsd:element ref="CrimeDescription" minOccurs="0" />
        <xsd:element ref="ConvictionDate" minOccurs="0" />
        <xsd:element ref="ConvictionCountry" minOccurs="0" />
        <xsd:element ref="ConvictionJurisdiction" minOccurs="0" />
        <xsd:element ref="ProbationInd" minOccurs="0" />
        <xsd:element ref="ProbationEndDate" minOccurs="0" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CriminalConvictionKey nsA:CriminalConvictionKey 0 (1)
CriminalConvictionSysKey nsA:CriminalConvictionSysKey 0 unbounded
FineAmount nsA:FineAmount 0 (1)
CrimeType nsA:CrimeType 0 (1)
CrimeDescription nsA:CrimeDescription 0 (1)
ConvictionDate nsA:ConvictionDate 0 (1)
ConvictionCountry nsA:ConvictionCountry 0 (1)
ConvictionJurisdiction nsA:ConvictionJurisdiction 0 (1)
ProbationInd nsA:ProbationInd 0 (1)
ProbationEndDate nsA:ProbationEndDate 0 (1)
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:CriminalConviction
