Documentation for Acord - Life, Annuity & Health Standards Program
Definition Type: ComplexType
Name: LifeStyleActivity_Type
Namespace: http://ACORD.org/Standards/Life/2
Containing Schema: XMLife2.20.01.xsd
Abstract

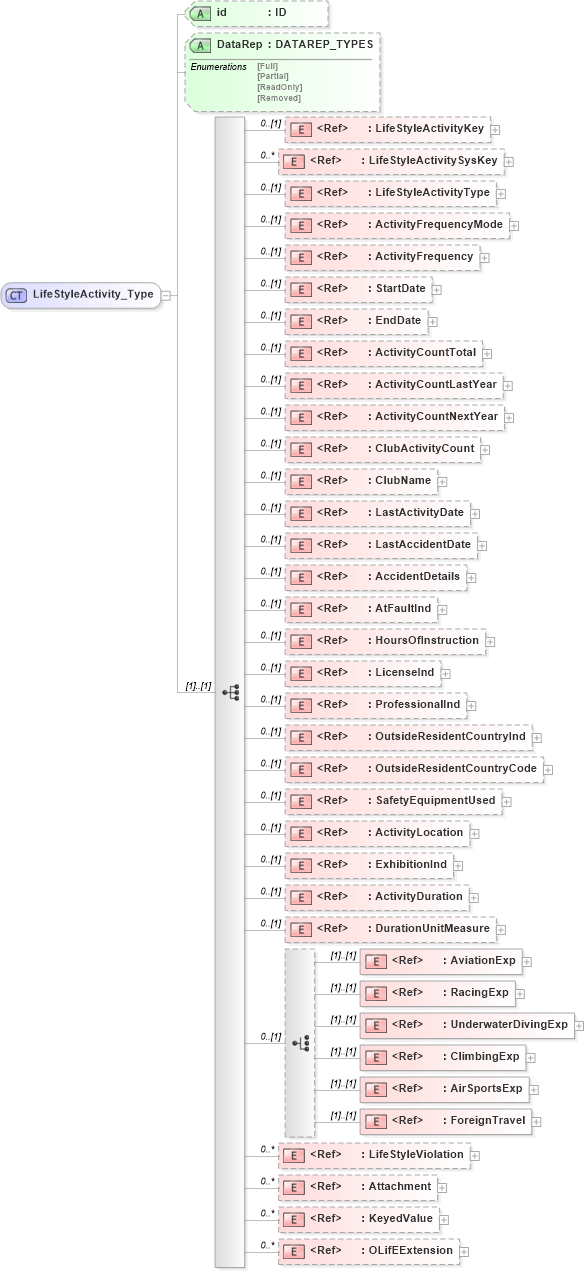

Collapse XSD Schema Diagram:
Drilldown into OLifEExtension in schema xlifebase2_20_01_xsd Drilldown into KeyedValue in schema xlifebase2_20_01_xsd Drilldown into Attachment in schema xmlife2_20_01_xsd Drilldown into LifeStyleViolation in schema xmlife2_20_01_xsd Drilldown into ForeignTravel in schema xmlife2_20_01_xsd Drilldown into AirSportsExp in schema xmlife2_20_01_xsd Drilldown into ClimbingExp in schema xmlife2_20_01_xsd Drilldown into UnderwaterDivingExp in schema xmlife2_20_01_xsd Drilldown into RacingExp in schema xmlife2_20_01_xsd Drilldown into AviationExp in schema xmlife2_20_01_xsd Drilldown into DurationUnitMeasure in schema xmlife2_20_01_xsd Drilldown into ActivityDuration in schema xmlife2_20_01_xsd Drilldown into ExhibitionInd in schema xmlife2_20_01_xsd Drilldown into ActivityLocation in schema xmlife2_20_01_xsd Drilldown into SafetyEquipmentUsed in schema xmlife2_20_01_xsd Drilldown into OutsideResidentCountryCode in schema xmlife2_20_01_xsd Drilldown into OutsideResidentCountryInd in schema xmlife2_20_01_xsd Drilldown into ProfessionalInd in schema xmlife2_20_01_xsd Drilldown into LicenseInd in schema xmlife2_20_01_xsd Drilldown into HoursOfInstruction in schema xmlife2_20_01_xsd Drilldown into AtFaultInd in schema xmlife2_20_01_xsd Drilldown into AccidentDetails in schema xmlife2_20_01_xsd Drilldown into LastAccidentDate in schema xmlife2_20_01_xsd Drilldown into LastActivityDate in schema xmlife2_20_01_xsd Drilldown into ClubName in schema xmlife2_20_01_xsd Drilldown into ClubActivityCount in schema xmlife2_20_01_xsd Drilldown into ActivityCountNextYear in schema xmlife2_20_01_xsd Drilldown into ActivityCountLastYear in schema xmlife2_20_01_xsd Drilldown into ActivityCountTotal in schema xmlife2_20_01_xsd Drilldown into EndDate in schema xlifebase2_20_01_xsd Drilldown into StartDate in schema xlifebase2_20_01_xsd Drilldown into ActivityFrequency in schema xmlife2_20_01_xsd Drilldown into ActivityFrequencyMode in schema xmlife2_20_01_xsd Drilldown into LifeStyleActivityType in schema xmlife2_20_01_xsd Drilldown into LifeStyleActivitySysKey in schema xmlife2_20_01_xsd Drilldown into LifeStyleActivityKey in schema xmlife2_20_01_xsd Drilldown into DataRep in schema xmlife2_20_01_xsd Drilldown into id in schema xmlife2_20_01_xsdXSD Diagram of LifeStyleActivity_Type in schema xmlife2_20_01_xsd (Acord - Life, Annuity & Health Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="LifeStyleActivity_Type">
    <xsd:sequence>
        <xsd:element ref="LifeStyleActivityKey" minOccurs="0" />
        <xsd:element ref="LifeStyleActivitySysKey" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LifeStyleActivityType" minOccurs="0" />
        <xsd:element ref="ActivityFrequencyMode" minOccurs="0" />
        <xsd:element ref="ActivityFrequency" minOccurs="0" />
        <xsd:element ref="StartDate" minOccurs="0" />
        <xsd:element ref="EndDate" minOccurs="0" />
        <xsd:element ref="ActivityCountTotal" minOccurs="0" />
        <xsd:element ref="ActivityCountLastYear" minOccurs="0" />
        <xsd:element ref="ActivityCountNextYear" minOccurs="0" />
        <xsd:element ref="ClubActivityCount" minOccurs="0" />
        <xsd:element ref="ClubName" minOccurs="0" />
        <xsd:element ref="LastActivityDate" minOccurs="0" />
        <xsd:element ref="LastAccidentDate" minOccurs="0" />
        <xsd:element ref="AccidentDetails" minOccurs="0" />
        <xsd:element ref="AtFaultInd" minOccurs="0" />
        <xsd:element ref="HoursOfInstruction" minOccurs="0" />
        <xsd:element ref="LicenseInd" minOccurs="0" />
        <xsd:element ref="ProfessionalInd" minOccurs="0" />
        <xsd:element ref="OutsideResidentCountryInd" minOccurs="0" />
        <xsd:element ref="OutsideResidentCountryCode" minOccurs="0" />
        <xsd:element ref="SafetyEquipmentUsed" minOccurs="0" />
        <xsd:element ref="ActivityLocation" minOccurs="0" />
        <xsd:element ref="ExhibitionInd" minOccurs="0" />
        <xsd:element ref="ActivityDuration" minOccurs="0" />
        <xsd:element ref="DurationUnitMeasure" minOccurs="0" />
        <xsd:choice minOccurs="0">
            <xsd:element ref="AviationExp" />
            <xsd:element ref="RacingExp" />
            <xsd:element ref="UnderwaterDivingExp" />
            <xsd:element ref="ClimbingExp" />
            <xsd:element ref="AirSportsExp" />
            <xsd:element ref="ForeignTravel" />
        </xsd:choice>
        <xsd:element ref="LifeStyleViolation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="KeyedValue" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OLifEExtension" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
    <xsd:attribute name="DataRep" type="DATAREP_TYPES" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LifeStyleActivityKey nsA:LifeStyleActivityKey 0 (1)
LifeStyleActivitySysKey nsA:LifeStyleActivitySysKey 0 unbounded
LifeStyleActivityType nsA:LifeStyleActivityType 0 (1)
ActivityFrequencyMode nsA:ActivityFrequencyMode 0 (1)
ActivityFrequency nsA:ActivityFrequency 0 (1)
StartDate nsA:StartDate 0 (1)
EndDate nsA:EndDate 0 (1)
ActivityCountTotal nsA:ActivityCountTotal 0 (1)
ActivityCountLastYear nsA:ActivityCountLastYear 0 (1)
ActivityCountNextYear nsA:ActivityCountNextYear 0 (1)
ClubActivityCount nsA:ClubActivityCount 0 (1)
ClubName nsA:ClubName 0 (1)
LastActivityDate nsA:LastActivityDate 0 (1)
LastAccidentDate nsA:LastAccidentDate 0 (1)
AccidentDetails nsA:AccidentDetails 0 (1)
AtFaultInd nsA:AtFaultInd 0 (1)
HoursOfInstruction nsA:HoursOfInstruction 0 (1)
LicenseInd nsA:LicenseInd 0 (1)
ProfessionalInd nsA:ProfessionalInd 0 (1)
OutsideResidentCountryInd nsA:OutsideResidentCountryInd 0 (1)
OutsideResidentCountryCode nsA:OutsideResidentCountryCode 0 (1)
SafetyEquipmentUsed nsA:SafetyEquipmentUsed 0 (1)
ActivityLocation nsA:ActivityLocation 0 (1)
ExhibitionInd nsA:ExhibitionInd 0 (1)
ActivityDuration nsA:ActivityDuration 0 (1)
DurationUnitMeasure nsA:DurationUnitMeasure 0 (1)
AviationExp nsA:AviationExp (1) (1)
RacingExp nsA:RacingExp (1) (1)
UnderwaterDivingExp nsA:UnderwaterDivingExp (1) (1)
ClimbingExp nsA:ClimbingExp (1) (1)
AirSportsExp nsA:AirSportsExp (1) (1)
ForeignTravel nsA:ForeignTravel (1) (1)
LifeStyleViolation nsA:LifeStyleViolation 0 unbounded
Attachment nsA:Attachment 0 unbounded
KeyedValue nsA:KeyedValue 0 unbounded
OLifEExtension nsA:OLifEExtension 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
DataRep nsA:DataRep (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:LifeStyleActivity
