Definition Type: Element
Name: AdMaterialResponse
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd
Abstract

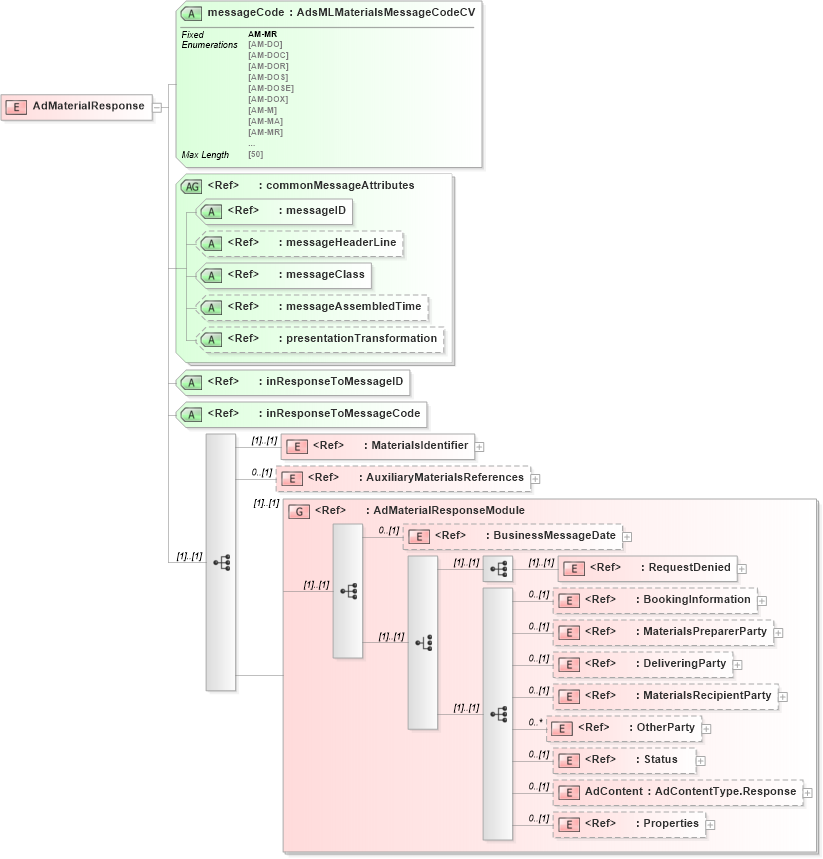

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdContent in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into MaterialsRecipientParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into DeliveringParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into MaterialsPreparerParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingInformation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into RequestDenied in schema adsmltypelibrary-2_0-as_xsd Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdMaterialResponseModule in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AuxiliaryMaterialsReferences in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsIdentifier in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into inResponseToMessageCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into inResponseToMessageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlmaterials-2_0-publictypelibrary-as_xsdXSD Diagram of AdMaterialResponse in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdMaterialResponse">
    <xs:annotation>
        <xs:documentation />
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="MaterialsIdentifier" />
            <xs:element ref="AuxiliaryMaterialsReferences" minOccurs="0" />
            <xs:group ref="AdMaterialResponseModule" />
        </xs:sequence>
        <xs:attribute name="messageCode" type="AdsMLMaterialsMessageCodeCV" use="required" fixed="AM-MR" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
        <xs:attribute ref="adsml:inResponseToMessageID" use="required" />
        <xs:attribute ref="adsml:inResponseToMessageCode" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MaterialsIdentifier adsml-ma:MaterialsIdentifier (1) (1)
AuxiliaryMaterialsReferences adsml-ma:AuxiliaryMaterialsReferences 0 (1)
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
RequestDenied adsml:RequestDenied (1) (1)
BookingInformation adsml-ma:BookingInformation 0 (1)
MaterialsPreparerParty adsml:MaterialsPreparerParty 0 (1)
DeliveringParty adsml:DeliveringParty 0 (1)
MaterialsRecipientParty adsml:MaterialsRecipientParty 0 (1)
OtherParty adsml:OtherParty 0 unbounded
Status adsml:Status 0 (1)
AdContent adsml-ma:AdContent 0 (1)
Properties adsml:Properties 0 (1)
<xs:group> adsml-ma:AdMaterialResponseModule (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml-ma:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
inResponseToMessageID adsml:inResponseToMessageID Required
inResponseToMessageCode adsml:inResponseToMessageCode Required
