Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: complexObject
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
An element to hold any combination of heterogeneous element children complexObject can be used as it stands but will often be extended by schema definitions in dictionary entries.

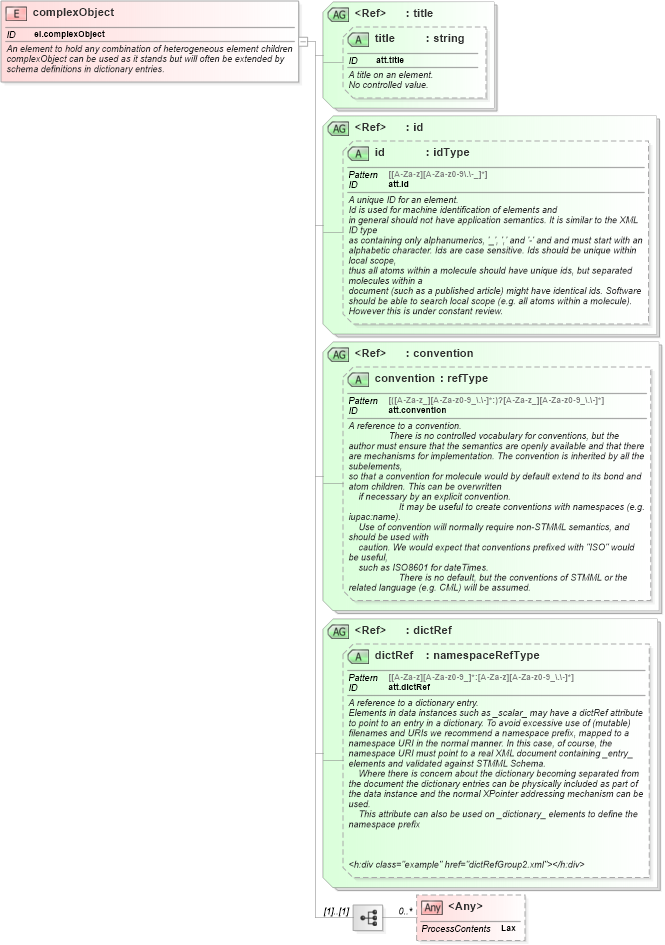

Collapse XSD Schema Diagram:
Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsdXSD Diagram of complexObject in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="complexObject" id="el.complexObject">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">An element to hold any combination of heterogeneous element children</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">complexObject can be used as it stands but will often be extended by
            schema definitions in dictionary entries.</h:div>
            <h:div class="example" href="complexObject1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:any processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="dictRef" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
title nsA:title (Optional)
id nsA:id (Optional)
convention nsA:convention (Optional)
dictRef nsA:dictRef (Optional)
