Definition Type: Element
Name: observation
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
An observation or occurrence. A container for any events that need to be recorded, whether planned or not. They can include notes, measurements, conditions that may be referenced elsewhere, etc. There are no controlled semantics.

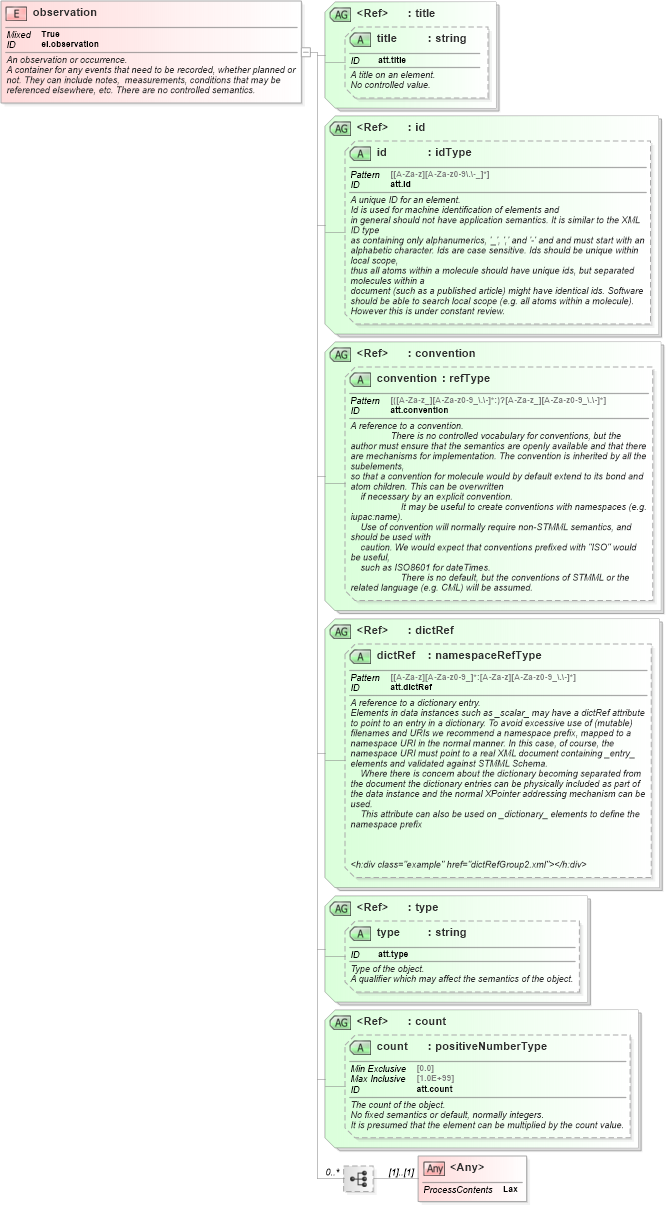

Collapse XSD Schema Diagram:
Drilldown into count in schema schema_xsd Drilldown into count in schema schema_xsd Drilldown into type in schema schema_xsd Drilldown into type in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsdXSD Diagram of observation in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="observation" id="el.observation">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">An observation or occurrence.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">A container for any events that need to be recorded, whether planned or not. They can include notes,  measurements, conditions that may be referenced elsewhere, etc. There are no controlled semantics.</h:div>
            <h:div class="example" href="observation1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType mixed="true">
        <xsd:sequence minOccurs="0" maxOccurs="unbounded">
            <xsd:any processContents="lax" />
        </xsd:sequence>
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="type" />
        <xsd:attributeGroup ref="count" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
title nsA:title (Optional)
id nsA:id (Optional)
convention nsA:convention (Optional)
dictRef nsA:dictRef (Optional)
type nsA:type (Optional)
count nsA:count (Optional)
