Definition Type: Element
Name: operator
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
An operator within an expression. Experimental. An operator acts on one or more arguments (at present the number is fixed by the type). The formulation is reverse Polish so the result (with its dataType) is put on a stack for further use.

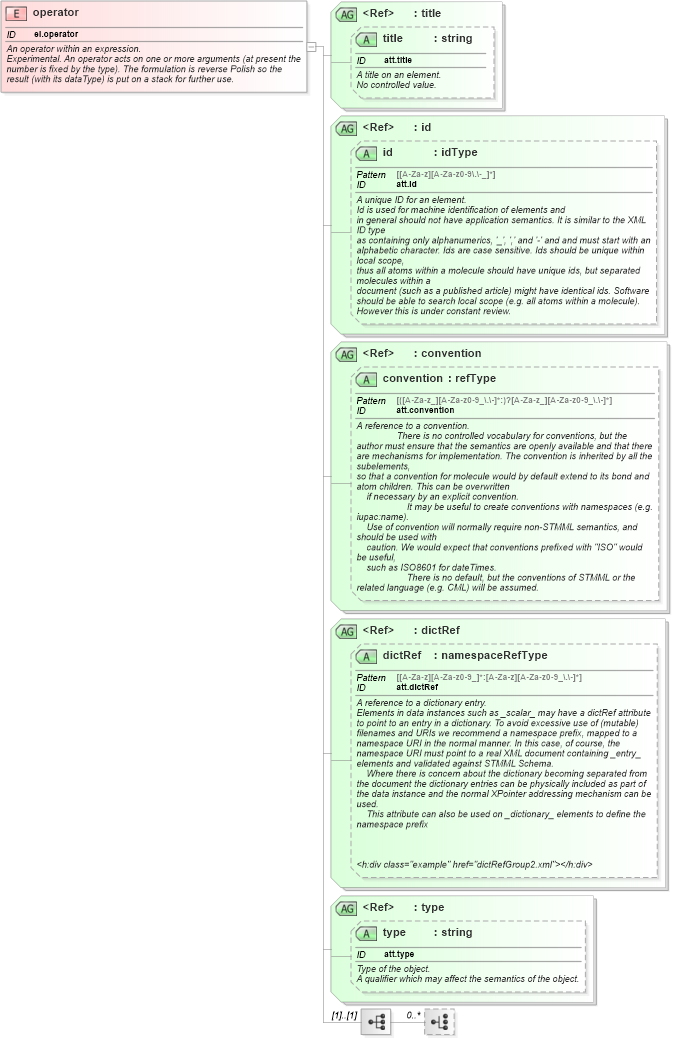

Collapse XSD Schema Diagram:
Drilldown into type in schema schema_xsd Drilldown into type in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsdXSD Diagram of operator in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="operator" id="el.operator">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">An operator within an expression.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">Experimental. An operator acts on one or more arguments (at present the number is fixed by the type). The formulation is reverse Polish so the result (with its dataType) is put on a stack for further use.</h:div>
            <h:div class="example" href="potential1.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:choice minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="dictRef" />
        <xsd:attributeGroup ref="type" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
title nsA:title (Optional)
id nsA:id (Optional)
convention nsA:convention (Optional)
dictRef nsA:dictRef (Optional)
type nsA:type (Optional)
