Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: tableHeader
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
Header for a table. Used for rowBased or contentBased tables when it is mandatory. Contains the metadata as tableHeaderCells which should match the (implicit) columns in number and semantic type. It is forbidden for arrayList tables as each array/list contains the metadata.

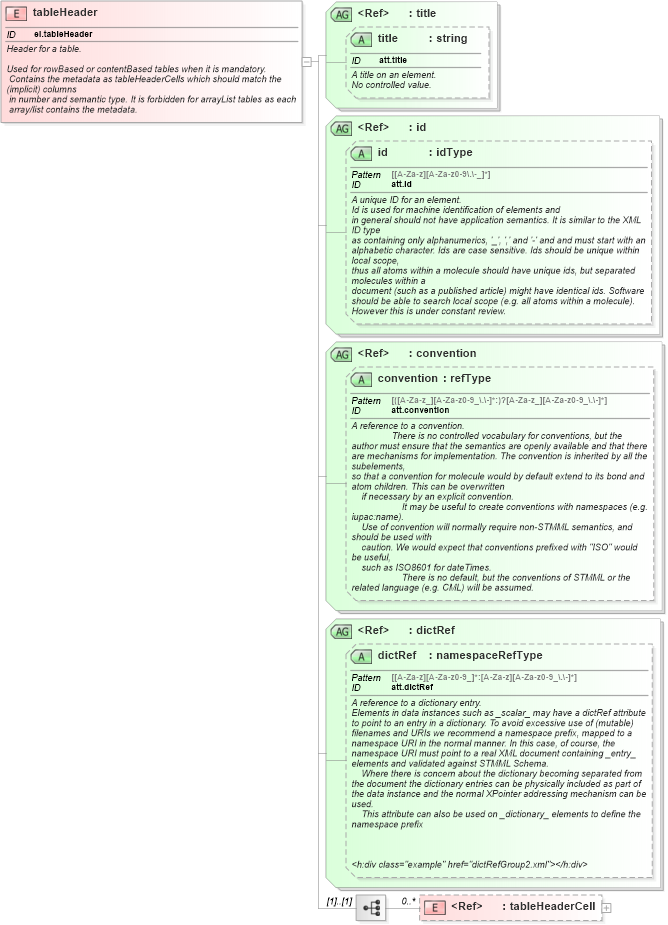

Collapse XSD Schema Diagram:
Drilldown into tableHeaderCell in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsdXSD Diagram of tableHeader in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="tableHeader" id="el.tableHeader">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">Header for a table.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:p>Used for rowBased or contentBased tables when it is mandatory.
             Contains the metadata as tableHeaderCells which should match the (implicit) columns
             in number and semantic type. It is forbidden for arrayList tables as each
             array/list contains the metadata.</h:p>
            </h:div>
            <h:div class="example" href="table6.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
            <h:div class="example" href="table7.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="tableHeaderCell" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="dictRef" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tableHeaderCell nsA:tableHeaderCell 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
title nsA:title (Optional)
id nsA:id (Optional)
convention nsA:convention (Optional)
dictRef nsA:dictRef (Optional)
