Documentation for Chemical Markup Language (CML)
Definition Type: Element
Name: tableRow
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Abstract
Documentation:
A row in a rowBased table. A direct child of tableRowList containing tableCells. At present all tableRows in a tableRowList must have the same count of tableCells and their semantics must correspond to the tableHeader in the table. No cells can be omitted and there is no spanning of cells. There is no need for a size attribute as the count is simply count(tableCell).

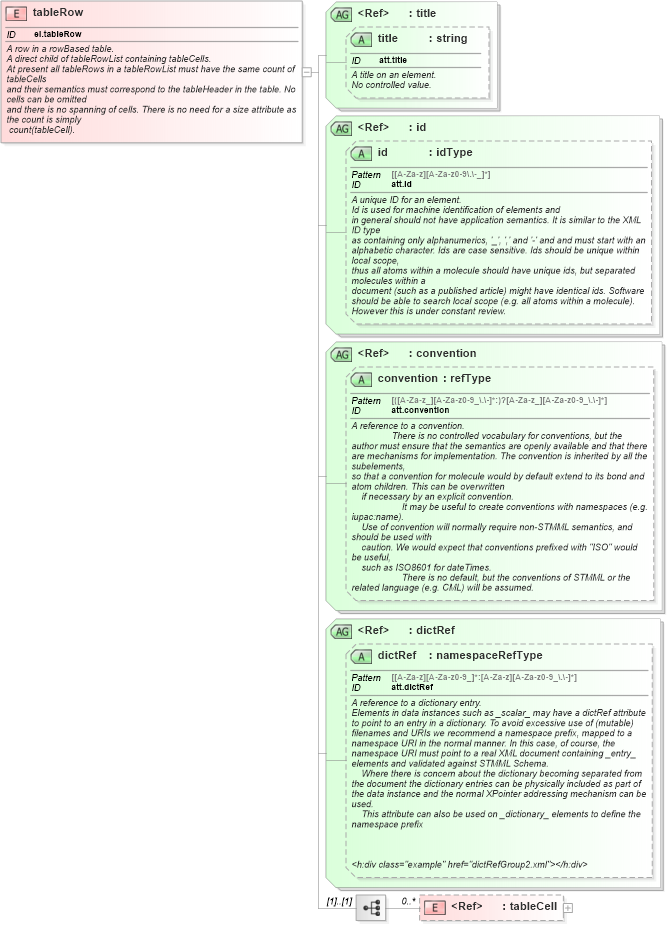

Collapse XSD Schema Diagram:
Drilldown into tableCell in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into dictRef in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into convention in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into id in schema schema_xsd Drilldown into title in schema schema_xsd Drilldown into title in schema schema_xsdXSD Diagram of tableRow in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:element name="tableRow" id="el.tableRow">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A row in a rowBased table.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">A direct child of tableRowList containing tableCells.
            At present all tableRows in a tableRowList must have the same count of tableCells
            and their semantics must correspond to the tableHeader in the table. No cells can be omitted
            and there is no spanning of cells. There is no need for a size attribute as the count is simply
            <h:tt> count(tableCell)</h:tt>.
            </h:div>
            <h:div class="example" href="table5.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
            <h:div class="example" href="table6.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
            <h:div class="example" href="tabler.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="tableCell" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attributeGroup ref="title" />
        <xsd:attributeGroup ref="id" />
        <xsd:attributeGroup ref="convention" />
        <xsd:attributeGroup ref="dictRef" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tableCell nsA:tableCell 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
title nsA:title (Optional)
id nsA:id (Optional)
convention nsA:convention (Optional)
dictRef nsA:dictRef (Optional)
