Documentation for CIDX eChemical Standard
Definition Type: Element
Name: ReceiptNoticeDetails
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:ReceiptNoticeDetailsType
Containing Schema: CIDX_CeS_v4.0_Message_ReceiptNotice.xsd
Abstract
Documentation:
Structure containing the details related to the ReceiptNotice message.

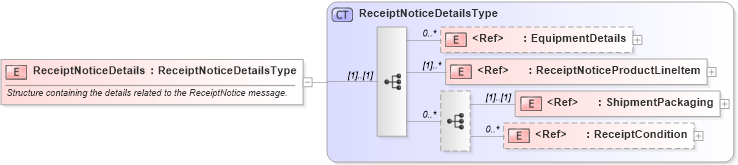

Collapse XSD Schema Diagram:
Drilldown into ReceiptCondition in schema cidx_ces_v4_0_message_receiptnotice_xsd Drilldown into ShipmentPackaging in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReceiptNoticeProductLineItem in schema cidx_ces_v4_0_message_receiptnotice_xsd Drilldown into EquipmentDetails in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReceiptNoticeDetailsType in schema cidx_ces_v4_0_message_receiptnotice_xsdXSD Diagram of ReceiptNoticeDetails in schema cidx_ces_v4_0_message_receiptnotice_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="ReceiptNoticeDetails" type="ReceiptNoticeDetailsType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Structure containing the details related to the ReceiptNotice message.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EquipmentDetails nsA:EquipmentDetails 0 unbounded
ReceiptNoticeProductLineItem nsA:ReceiptNoticeProductLineItem (1) unbounded
ShipmentPackaging nsA:ShipmentPackaging (1) (1)
ReceiptCondition nsA:ReceiptCondition 0 unbounded
Collapse Derivation Tree:
