Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: ReceiptNoticeDetailsType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_Message_ReceiptNotice.xsd
Abstract

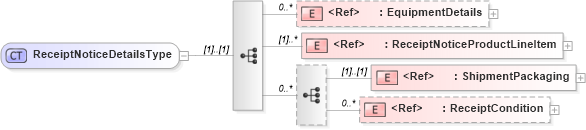

Collapse XSD Schema Diagram:
Drilldown into ReceiptCondition in schema cidx_ces_v4_0_message_receiptnotice_xsd Drilldown into ShipmentPackaging in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReceiptNoticeProductLineItem in schema cidx_ces_v4_0_message_receiptnotice_xsd Drilldown into EquipmentDetails in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of ReceiptNoticeDetailsType in schema cidx_ces_v4_0_message_receiptnotice_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="ReceiptNoticeDetailsType">
    <xsd:sequence>
        <xsd:element ref="EquipmentDetails" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReceiptNoticeProductLineItem" maxOccurs="unbounded" />
        <xsd:sequence minOccurs="0" maxOccurs="unbounded">
            <xsd:element ref="ShipmentPackaging" />
            <xsd:element ref="ReceiptCondition" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EquipmentDetails nsA:EquipmentDetails 0 unbounded
ReceiptNoticeProductLineItem nsA:ReceiptNoticeProductLineItem (1) unbounded
ShipmentPackaging nsA:ShipmentPackaging (1) (1)
ReceiptCondition nsA:ReceiptCondition 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:ReceiptNoticeDetails
