Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: YieldData_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

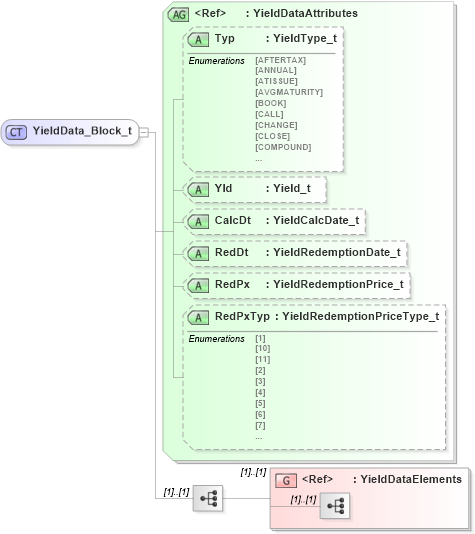

Collapse XSD Schema Diagram:
Drilldown into YieldDataElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into RedPxTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into RedPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into RedDt in schema fixml-components-base-5-0-sp2_xsd Drilldown into CalcDt in schema fixml-components-base-5-0-sp2_xsd Drilldown into Yld in schema fixml-components-base-5-0-sp2_xsd Drilldown into Typ in schema fixml-components-base-5-0-sp2_xsd Drilldown into YieldDataAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of YieldData_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="YieldData_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="YieldData" ComponentType="Block" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="YieldDataElements" />
    </xs:sequence>
    <xs:attributeGroup ref="YieldDataAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:YieldDataElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Typ nsA:Typ Optional
Yld nsA:Yld Optional
CalcDt nsA:CalcDt Optional
RedDt nsA:RedDt Optional
RedPx nsA:RedPx Optional
RedPxTyp nsA:RedPxTyp Optional
Collapse Derivation Tree:
Collapse References:
nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:YieldnsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield, nsA:Yield,
