Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxSingleLeg
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:FXLeg
Containing Schema: fpml-fx-4-0.xsd
Abstract
Documentation:
A single-legged FX transaction definition (e.g., spot or forward).

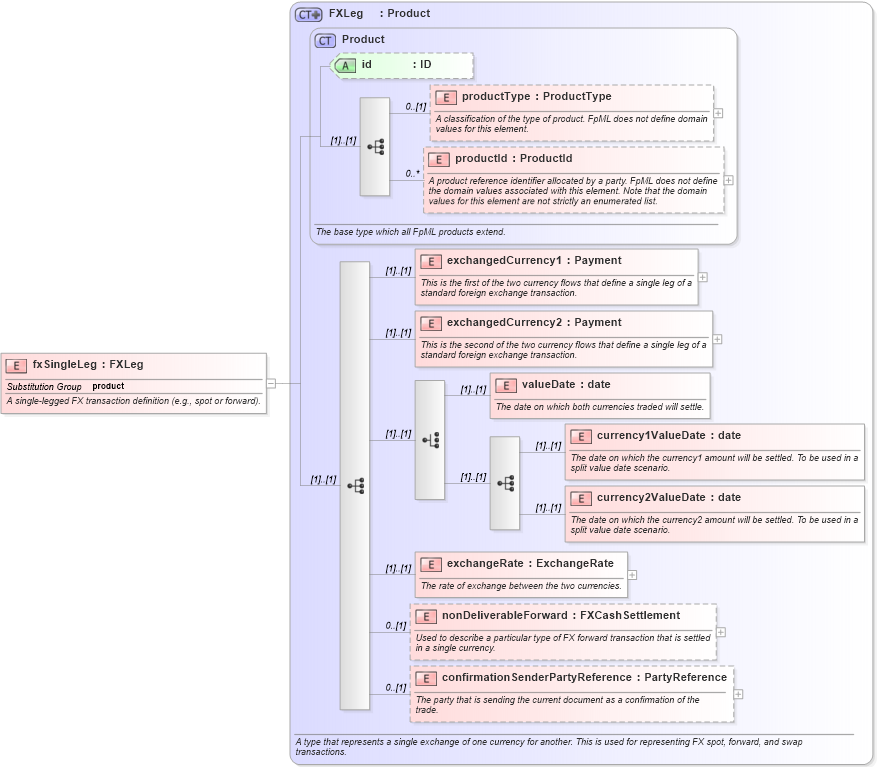

Collapse XSD Schema Diagram:
Drilldown into confirmationSenderPartyReference in schema fpml-fx-4-0_xsd Drilldown into nonDeliverableForward in schema fpml-fx-4-0_xsd Drilldown into exchangeRate in schema fpml-fx-4-0_xsd Drilldown into currency2ValueDate in schema fpml-fx-4-0_xsd Drilldown into currency1ValueDate in schema fpml-fx-4-0_xsd Drilldown into valueDate in schema fpml-fx-4-0_xsd Drilldown into exchangedCurrency2 in schema fpml-fx-4-0_xsd Drilldown into exchangedCurrency1 in schema fpml-fx-4-0_xsd Drilldown into productId in schema fpml-shared-4-0_xsd Drilldown into productType in schema fpml-shared-4-0_xsd Drilldown into id in schema fpml-shared-4-0_xsd Drilldown into Product in schema fpml-shared-4-0_xsd Drilldown into FXLeg in schema fpml-fx-4-0_xsdXSD Diagram of fxSingleLeg in schema fpml-fx-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxSingleLeg" type="FXLeg" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A single-legged FX transaction definition (e.g., spot or forward).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType nsA:productType 0 (1)
productId nsA:productId 0 unbounded
exchangedCurrency1 nsA:exchangedCurrency1 (1) (1)
exchangedCurrency2 nsA:exchangedCurrency2 (1) (1)
valueDate nsA:valueDate (1) (1)
currency1ValueDate nsA:currency1ValueDate (1) (1)
currency2ValueDate nsA:currency2ValueDate (1) (1)
exchangeRate nsA:exchangeRate (1) (1)
nonDeliverableForward nsA:nonDeliverableForward 0 (1)
confirmationSenderPartyReference nsA:confirmationSenderPartyReference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
