Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: accrual
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxAccrual
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Describes accrual features within the product.

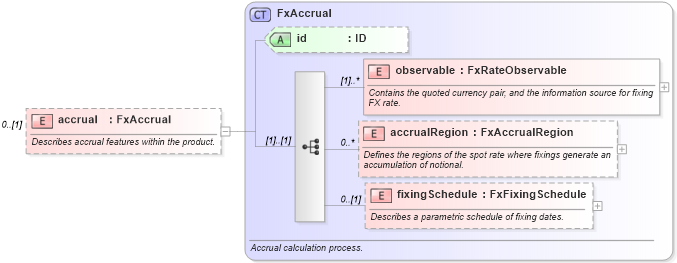

Collapse XSD Schema Diagram:
Drilldown into fixingSchedule in schema fpml-fx-accruals-5-10_xsd2 Drilldown into accrualRegion in schema fpml-fx-accruals-5-10_xsd2 Drilldown into observable in schema fpml-fx-accruals-5-10_xsd2 Drilldown into id in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAccrual in schema fpml-fx-accruals-5-10_xsd2XSD Diagram of accrual in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="accrual" type="FxAccrual" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes accrual features within the product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observable nsE:observable (1) unbounded
accrualRegion nsE:accrualRegion 0 unbounded
fixingSchedule nsE:fixingSchedule 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
