Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ClearingConfirmed
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:NotificationMessage
Containing Schema: fpml-confirmation-processes-5-10.xsd
Abstract
Documentation:
A message indicating that a clearing request has been acted on and as a result a trade has been cleared.

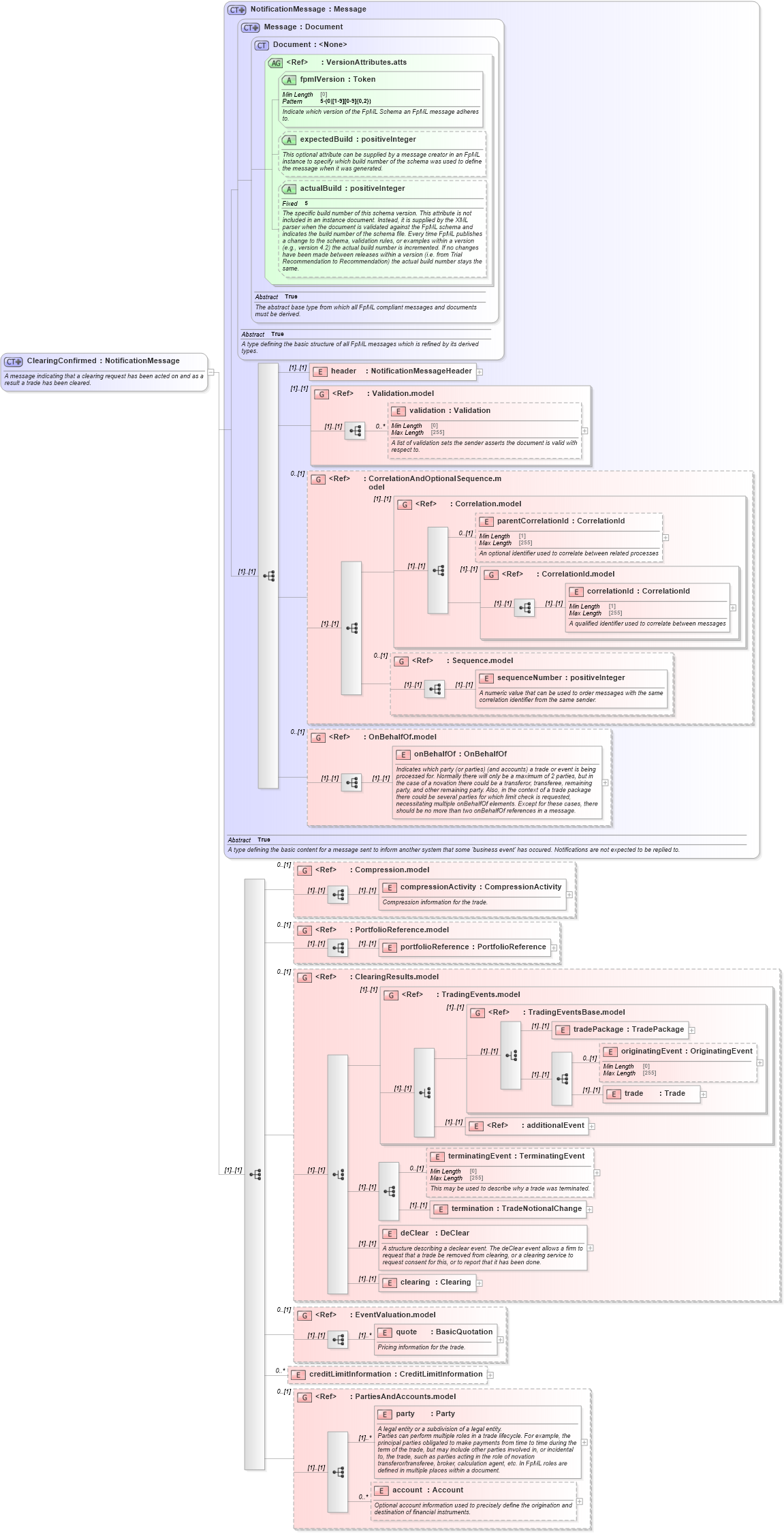

Collapse XSD Schema Diagram:
Drilldown into account in schema fpml-shared-5-10_xsd Drilldown into party in schema fpml-shared-5-10_xsd Drilldown into PartiesAndAccounts.model in schema fpml-shared-5-10_xsd Drilldown into creditLimitInformation in schema fpml-confirmation-processes-5-10_xsd Drilldown into quote in schema fpml-business-events-5-10_xsd Drilldown into EventValuation.model in schema fpml-business-events-5-10_xsd Drilldown into clearing in schema fpml-confirmation-processes-5-10_xsd Drilldown into deClear in schema fpml-confirmation-processes-5-10_xsd Drilldown into termination in schema fpml-confirmation-processes-5-10_xsd Drilldown into terminatingEvent in schema fpml-confirmation-processes-5-10_xsd Drilldown into additionalEvent in schema fpml-business-events-5-10_xsd Drilldown into trade in schema fpml-business-events-5-10_xsd Drilldown into originatingEvent in schema fpml-business-events-5-10_xsd Drilldown into tradePackage in schema fpml-business-events-5-10_xsd Drilldown into TradingEventsBase.model in schema fpml-business-events-5-10_xsd Drilldown into TradingEvents.model in schema fpml-business-events-5-10_xsd Drilldown into ClearingResults.model in schema fpml-confirmation-processes-5-10_xsd Drilldown into portfolioReference in schema fpml-msg-5-10_xsd Drilldown into PortfolioReference.model in schema fpml-msg-5-10_xsd Drilldown into compressionActivity in schema fpml-business-events-5-10_xsd Drilldown into Compression.model in schema fpml-business-events-5-10_xsd Drilldown into onBehalfOf in schema fpml-shared-5-10_xsd Drilldown into OnBehalfOf.model in schema fpml-shared-5-10_xsd Drilldown into sequenceNumber in schema fpml-msg-5-10_xsd Drilldown into Sequence.model in schema fpml-msg-5-10_xsd Drilldown into correlationId in schema fpml-msg-5-10_xsd Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd Drilldown into Correlation.model in schema fpml-msg-5-10_xsd Drilldown into CorrelationAndOptionalSequence.model in schema fpml-msg-5-10_xsd Drilldown into validation in schema fpml-doc-5-10_xsd Drilldown into Validation.model in schema fpml-doc-5-10_xsd Drilldown into header in schema fpml-msg-5-10_xsd Drilldown into actualBuild in schema fpml-doc-5-10_xsd Drilldown into expectedBuild in schema fpml-doc-5-10_xsd Drilldown into fpmlVersion in schema fpml-doc-5-10_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-5-10_xsd Drilldown into Document in schema fpml-doc-5-10_xsd Drilldown into Message in schema fpml-msg-5-10_xsd Drilldown into NotificationMessage in schema fpml-msg-5-10_xsdXSD Diagram of ClearingConfirmed in schema fpml-confirmation-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ClearingConfirmed">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A message indicating that a clearing request has been acted on and as a result a trade has been cleared.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NotificationMessage">
            <xsd:sequence>
                <xsd:group ref="Compression.model" minOccurs="0" />
                <xsd:group ref="PortfolioReference.model" minOccurs="0" />
                <xsd:group ref="ClearingResults.model" minOccurs="0" />
                <xsd:group ref="EventValuation.model" minOccurs="0" />
                <xsd:element name="creditLimitInformation" type="CreditLimitInformation" minOccurs="0" maxOccurs="unbounded" />
                <xsd:group ref="PartiesAndAccounts.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
parentCorrelationId nsA:parentCorrelationId 0 (1)
correlationId nsA:correlationId (1) (1)
sequenceNumber nsA:sequenceNumber (1) (1)
onBehalfOf nsA:onBehalfOf (1) (1)
compressionActivity nsA:compressionActivity (1) (1)
portfolioReference nsA:portfolioReference (1) (1)
tradePackage nsA:tradePackage (1) (1)
originatingEvent nsA:originatingEvent 0 (1)
trade nsA:trade (1) (1)
additionalEvent nsA:additionalEvent (1) (1)
terminatingEvent nsA:terminatingEvent 0 (1)
termination nsA:termination (1) (1)
deClear nsA:deClear (1) (1)
clearing nsA:clearing (1) (1)
quote nsA:quote (1) unbounded
creditLimitInformation nsA:creditLimitInformation 0 unbounded
party nsA:party (1) unbounded
account nsA:account 0 unbounded
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:CorrelationAndOptionalSequence.model 0 (1)
<xs:group> nsA:Correlation.model (1) (1)
<xs:group> nsA:CorrelationId.model (1) (1)
<xs:group> nsA:Sequence.model 0 (1)
<xs:group> nsA:OnBehalfOf.model 0 (1)
<xs:group> nsA:Compression.model 0 (1)
<xs:group> nsA:PortfolioReference.model 0 (1)
<xs:group> nsA:ClearingResults.model 0 (1)
<xs:group> nsA:TradingEvents.model (1) (1)
<xs:group> nsA:TradingEventsBase.model (1) (1)
<xs:group> nsA:EventValuation.model 0 (1)
<xs:group> nsA:PartiesAndAccounts.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsA:fpmlVersion Required
expectedBuild nsA:expectedBuild (Optional)
actualBuild nsA:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:clearingConfirmed
