Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commodityBasketOption
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CommodityBasketOption
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
Defines a commodity basket option product.

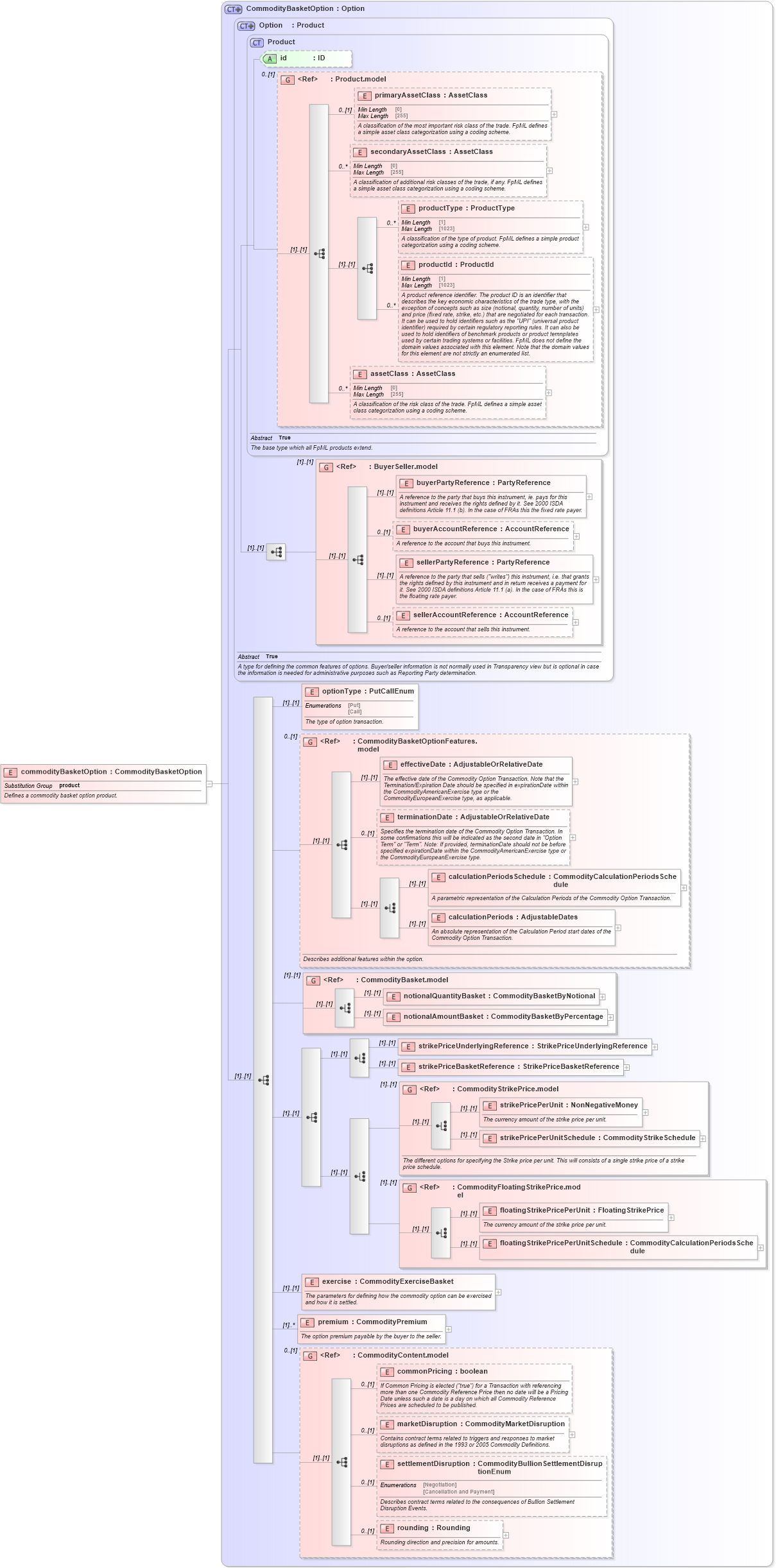

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-10_xsd Drilldown into settlementDisruption in schema fpml-com-5-10_xsd Drilldown into marketDisruption in schema fpml-com-5-10_xsd Drilldown into commonPricing in schema fpml-com-5-10_xsd Drilldown into CommodityContent.model in schema fpml-com-5-10_xsd Drilldown into premium in schema fpml-com-5-10_xsd Drilldown into exercise in schema fpml-com-5-10_xsd Drilldown into floatingStrikePricePerUnitSchedule in schema fpml-com-5-10_xsd Drilldown into floatingStrikePricePerUnit in schema fpml-com-5-10_xsd Drilldown into CommodityFloatingStrikePrice.model in schema fpml-com-5-10_xsd Drilldown into strikePricePerUnitSchedule in schema fpml-com-5-10_xsd Drilldown into strikePricePerUnit in schema fpml-com-5-10_xsd Drilldown into CommodityStrikePrice.model in schema fpml-com-5-10_xsd Drilldown into strikePriceBasketReference in schema fpml-com-5-10_xsd Drilldown into strikePriceUnderlyingReference in schema fpml-com-5-10_xsd Drilldown into notionalAmountBasket in schema fpml-com-5-10_xsd Drilldown into notionalQuantityBasket in schema fpml-com-5-10_xsd Drilldown into CommodityBasket.model in schema fpml-com-5-10_xsd Drilldown into calculationPeriods in schema fpml-com-5-10_xsd Drilldown into calculationPeriodsSchedule in schema fpml-com-5-10_xsd Drilldown into terminationDate in schema fpml-com-5-10_xsd Drilldown into effectiveDate in schema fpml-com-5-10_xsd Drilldown into CommodityBasketOptionFeatures.model in schema fpml-com-5-10_xsd Drilldown into optionType in schema fpml-com-5-10_xsd Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd Drilldown into assetClass in schema fpml-shared-5-10_xsd Drilldown into productId in schema fpml-shared-5-10_xsd Drilldown into productType in schema fpml-shared-5-10_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into Product.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Product in schema fpml-shared-5-10_xsd Drilldown into Option in schema fpml-option-shared-5-10_xsd Drilldown into CommodityBasketOption in schema fpml-com-5-10_xsdXSD Diagram of commodityBasketOption in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commodityBasketOption" type="CommodityBasketOption" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a commodity basket option product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
buyerPartyReference nsA:buyerPartyReference (1) (1)
buyerAccountReference nsA:buyerAccountReference 0 (1)
sellerPartyReference nsA:sellerPartyReference (1) (1)
sellerAccountReference nsA:sellerAccountReference 0 (1)
optionType nsA:optionType (1) (1)
effectiveDate nsA:effectiveDate (1) (1)
terminationDate nsA:terminationDate 0 (1)
calculationPeriodsSchedule nsA:calculationPeriodsSchedule (1) (1)
calculationPeriods nsA:calculationPeriods (1) (1)
notionalQuantityBasket nsA:notionalQuantityBasket (1) (1)
notionalAmountBasket nsA:notionalAmountBasket (1) (1)
strikePriceUnderlyingReference nsA:strikePriceUnderlyingReference (1) (1)
strikePriceBasketReference nsA:strikePriceBasketReference (1) (1)
strikePricePerUnit nsA:strikePricePerUnit (1) (1)
strikePricePerUnitSchedule nsA:strikePricePerUnitSchedule (1) (1)
floatingStrikePricePerUnit nsA:floatingStrikePricePerUnit (1) (1)
floatingStrikePricePerUnitSchedule nsA:floatingStrikePricePerUnitSchedule (1) (1)
exercise nsA:exercise (1) (1)
premium nsA:premium (1) unbounded
commonPricing nsA:commonPricing 0 (1)
marketDisruption nsA:marketDisruption 0 (1)
settlementDisruption nsA:settlementDisruption 0 (1)
rounding nsA:rounding 0 (1)
<xs:group> nsA:BuyerSeller.model (1) (1)
<xs:group> nsA:CommodityBasketOptionFeatures.model 0 (1)
<xs:group> nsA:CommodityBasket.model (1) (1)
<xs:group> nsA:CommodityStrikePrice.model (1) (1)
<xs:group> nsA:CommodityFloatingStrikePrice.model (1) (1)
<xs:group> nsA:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
