Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:ReturnSwapBase
Containing Schema: fpml-return-swaps-5-10.xsd
Abstract
Documentation:
A type for defining Equity Swap Transaction Supplement

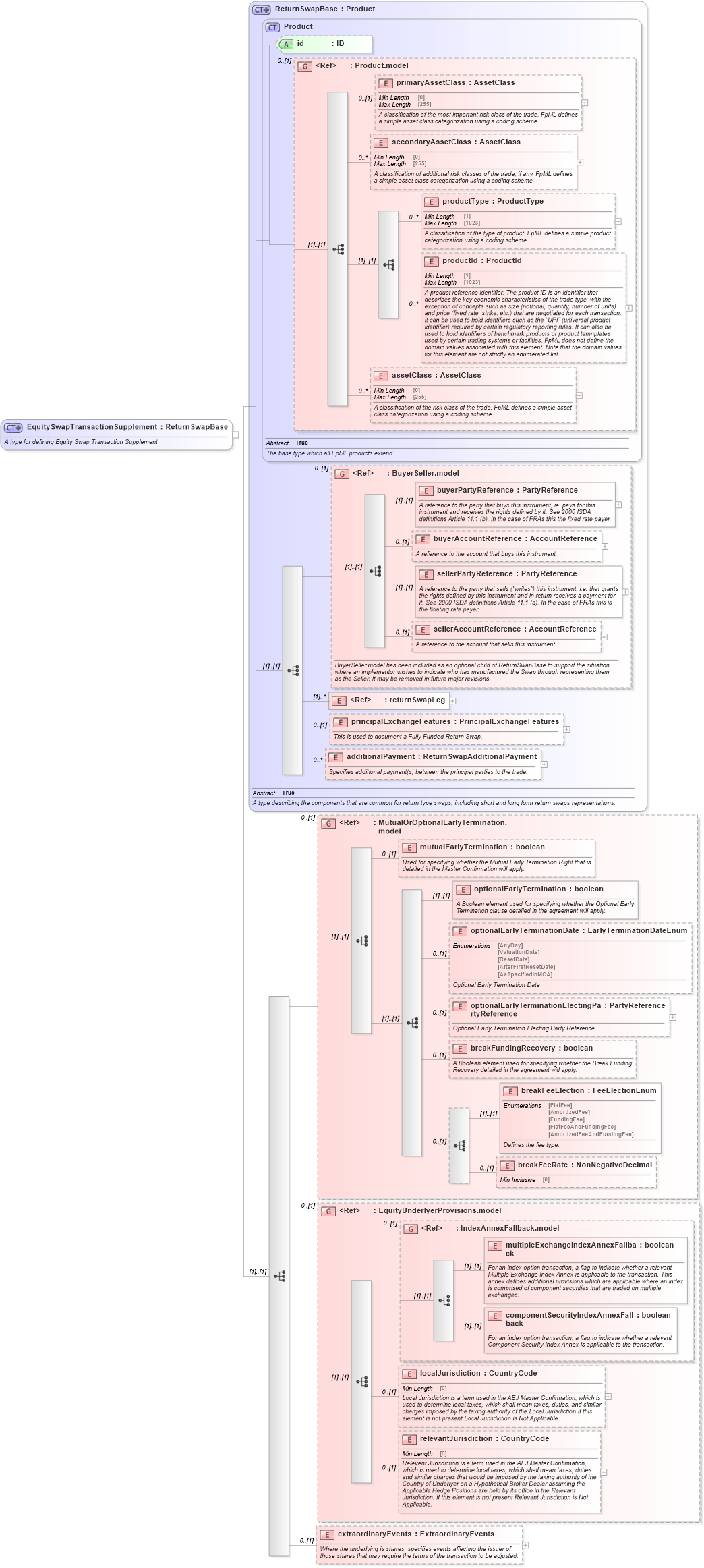

Collapse XSD Schema Diagram:
Drilldown into extraordinaryEvents in schema fpml-return-swaps-5-10_xsd Drilldown into relevantJurisdiction in schema fpml-eq-shared-5-10_xsd Drilldown into localJurisdiction in schema fpml-eq-shared-5-10_xsd Drilldown into componentSecurityIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd Drilldown into IndexAnnexFallback.model in schema fpml-eq-shared-5-10_xsd Drilldown into EquityUnderlyerProvisions.model in schema fpml-eq-shared-5-10_xsd Drilldown into breakFeeRate in schema fpml-eq-shared-5-10_xsd Drilldown into breakFeeElection in schema fpml-eq-shared-5-10_xsd Drilldown into breakFundingRecovery in schema fpml-eq-shared-5-10_xsd Drilldown into optionalEarlyTerminationElectingPartyReference in schema fpml-eq-shared-5-10_xsd Drilldown into optionalEarlyTerminationDate in schema fpml-eq-shared-5-10_xsd Drilldown into optionalEarlyTermination in schema fpml-eq-shared-5-10_xsd Drilldown into mutualEarlyTermination in schema fpml-eq-shared-5-10_xsd Drilldown into MutualOrOptionalEarlyTermination.model in schema fpml-eq-shared-5-10_xsd Drilldown into additionalPayment in schema fpml-eq-shared-5-10_xsd Drilldown into principalExchangeFeatures in schema fpml-eq-shared-5-10_xsd Drilldown into returnSwapLeg in schema fpml-eq-shared-5-10_xsd Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd Drilldown into assetClass in schema fpml-shared-5-10_xsd Drilldown into productId in schema fpml-shared-5-10_xsd Drilldown into productType in schema fpml-shared-5-10_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into Product.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Product in schema fpml-shared-5-10_xsd Drilldown into ReturnSwapBase in schema fpml-eq-shared-5-10_xsdXSD Diagram of EquitySwapTransactionSupplement in schema fpml-return-swaps-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquitySwapTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining Equity Swap Transaction Supplement</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ReturnSwapBase">
            <xsd:sequence>
                <xsd:group ref="MutualOrOptionalEarlyTermination.model" minOccurs="0" />
                <xsd:group ref="EquityUnderlyerProvisions.model" minOccurs="0">
                </xsd:group>
                <xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
buyerPartyReference nsA:buyerPartyReference (1) (1)
buyerAccountReference nsA:buyerAccountReference 0 (1)
sellerPartyReference nsA:sellerPartyReference (1) (1)
sellerAccountReference nsA:sellerAccountReference 0 (1)
returnSwapLeg nsA:returnSwapLeg (1) unbounded
principalExchangeFeatures nsA:principalExchangeFeatures 0 (1)
additionalPayment nsA:additionalPayment 0 unbounded
mutualEarlyTermination nsA:mutualEarlyTermination 0 (1)
optionalEarlyTermination nsA:optionalEarlyTermination (1) (1)
optionalEarlyTerminationDate nsA:optionalEarlyTerminationDate 0 (1)
optionalEarlyTerminationElectingPartyReference nsA:optionalEarlyTerminationElectingPartyReference 0 (1)
breakFundingRecovery nsA:breakFundingRecovery 0 (1)
breakFeeElection nsA:breakFeeElection (1) (1)
breakFeeRate nsA:breakFeeRate 0 (1)
multipleExchangeIndexAnnexFallback nsA:multipleExchangeIndexAnnexFallback (1) (1)
componentSecurityIndexAnnexFallback nsA:componentSecurityIndexAnnexFallback (1) (1)
localJurisdiction nsA:localJurisdiction 0 (1)
relevantJurisdiction nsA:relevantJurisdiction 0 (1)
extraordinaryEvents nsA:extraordinaryEvents 0 (1)
<xs:group> nsA:BuyerSeller.model 0 (1)
<xs:group> nsA:MutualOrOptionalEarlyTermination.model 0 (1)
<xs:group> nsA:EquityUnderlyerProvisions.model 0 (1)
<xs:group> nsA:IndexAnnexFallback.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:equitySwapTransactionSupplement
