Docs for schema item feeDue in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	feeDue
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:LoanAllocationTransferFeeDueEvent
Containing Schema:	fpml-loan-5-10.xsd
MinOccurs	(1)
MaxOccurs	unbounded
Abstract
Documentation:	A structure to indicate the transfer fee due at the allocation level.

XSD Schema Diagram:

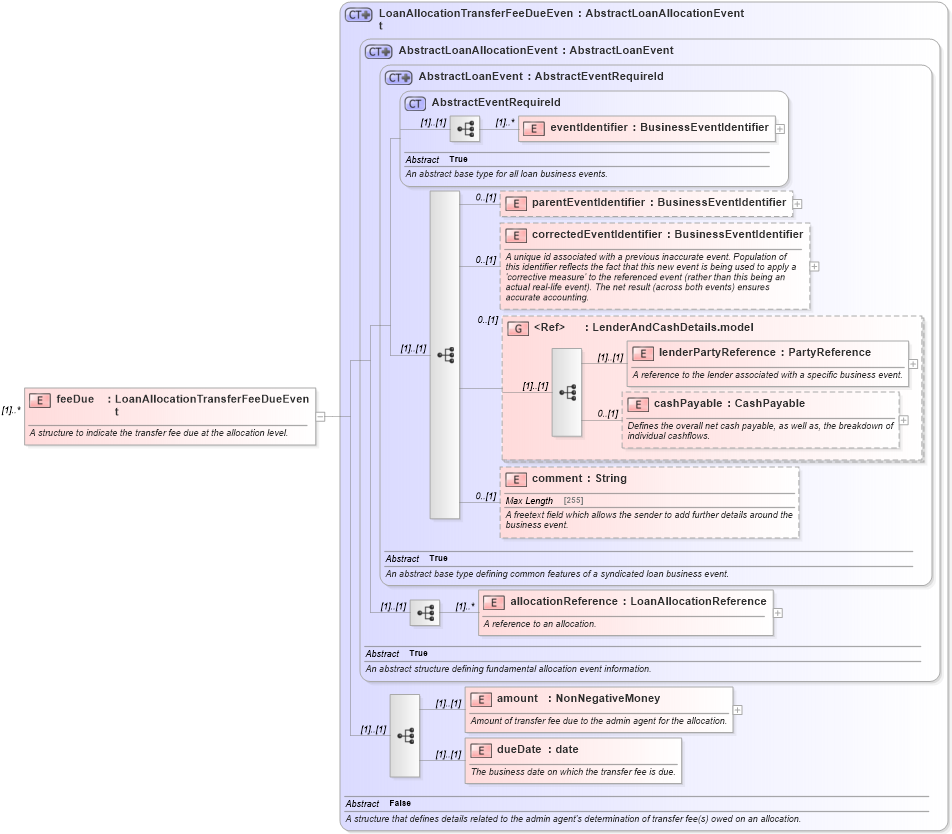

XSD Diagram of feeDue in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="feeDue" type="LoanAllocationTransferFeeDueEvent" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>A structure to indicate the transfer fee due at the allocation level.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
eventIdentifier	nsA:eventIdentifier	(1)	unbounded
parentEventIdentifier	nsA:parentEventIdentifier	0	(1)
correctedEventIdentifier	nsA:correctedEventIdentifier	0	(1)
lenderPartyReference	nsA:lenderPartyReference	(1)	(1)
cashPayable	nsA:cashPayable	0	(1)
comment	nsA:comment	0	(1)
allocationReference	nsA:allocationReference	(1)	unbounded
amount	nsA:amount	(1)	(1)
dueDate	nsA:dueDate	(1)	(1)
<xs:group>	nsA:LenderAndCashDetails.model	0	(1)

Derivation Tree:
	nsA:AbstractEventRequireId nsA:AbstractLoanEvent nsA:AbstractLoanAllocationEvent nsA:LoanAllocationTransferFeeDueEvent *feeDue*
