Docs for schema item AbstractLoanAllocationEvent in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	ComplexType
Name:	AbstractLoanAllocationEvent
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:AbstractLoanEvent
Containing Schema:	fpml-loan-5-10.xsd
Abstract	True
Documentation:	An abstract structure defining fundamental allocation event information.

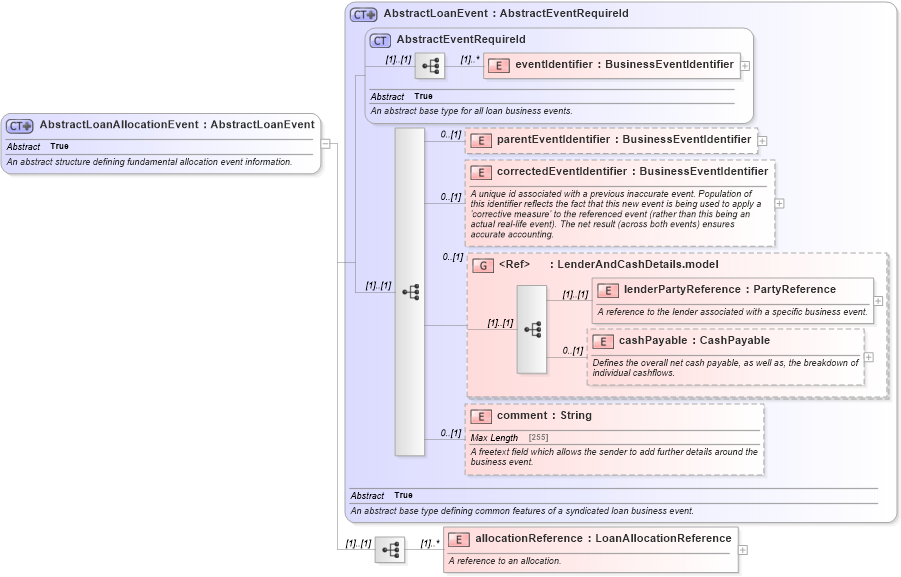

XSD Schema Diagram:

XSD Diagram of AbstractLoanAllocationEvent in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:complexType name="AbstractLoanAllocationEvent" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An abstract structure defining fundamental allocation event information.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="AbstractLoanEvent">
            <xsd:sequence>
                <xsd:element name="allocationReference" type="LoanAllocationReference" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A reference to an allocation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
eventIdentifier	nsA:eventIdentifier	(1)	unbounded
parentEventIdentifier	nsA:parentEventIdentifier	0	(1)
correctedEventIdentifier	nsA:correctedEventIdentifier	0	(1)
lenderPartyReference	nsA:lenderPartyReference	(1)	(1)
cashPayable	nsA:cashPayable	0	(1)
comment	nsA:comment	0	(1)
allocationReference	nsA:allocationReference	(1)	unbounded
<xs:group>	nsA:LenderAndCashDetails.model	0	(1)

Derivation Tree:
	nsA:AbstractEventRequireId nsA:AbstractLoanEvent *AbstractLoanAllocationEvent* nsA:LoanAllocationEvent nsA:confirmation nsA:allocationEvent nsA:LoanAllocationTransferFeeDueEvent nsA:feeDue nsA:LoanAllocationTransferFeeOwedEvent nsA:feeOwed nsA:LoanSettlementDateAvailabilityEvent nsA:settlementDateAvailability nsA:LoanSettlementDateFinalizationEvent nsA:settlementDateFinalization

References:
	nsA:LoanAllocationEvent, nsA:LoanAllocationTransferFeeDueEvent, nsA:LoanAllocationTransferFeeOwedEvent, nsA:LoanSettlementDateAvailabilityEvent, nsA:LoanSettlementDateFinalizationEvent
