Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fra
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Fra
Containing Schema: fpml-ird-5-10.xsd
Abstract
Documentation:
A forward rate agreement product definition.

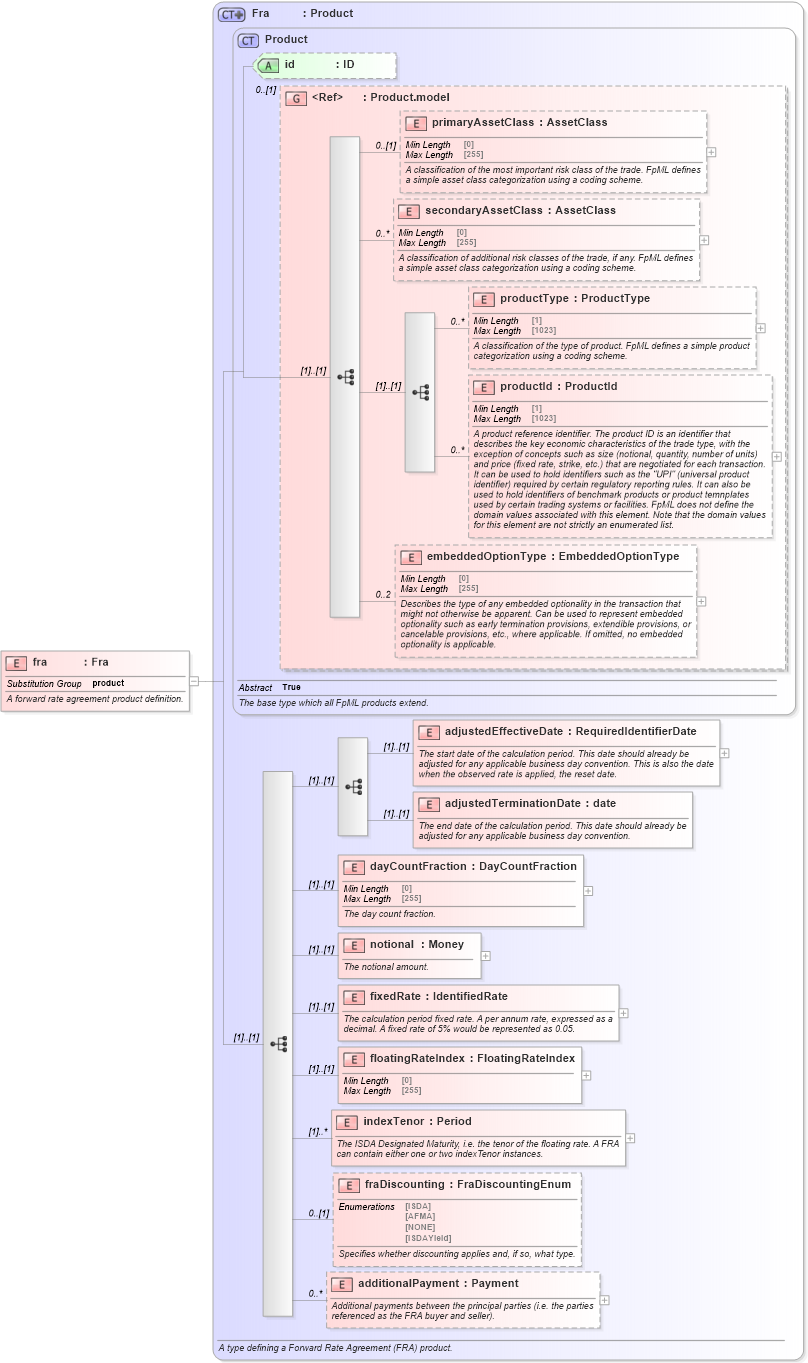

Collapse XSD Schema Diagram:
Drilldown into additionalPayment in schema fpml-ird-5-10_xsd4 Drilldown into fraDiscounting in schema fpml-ird-5-10_xsd4 Drilldown into indexTenor in schema fpml-ird-5-10_xsd4 Drilldown into floatingRateIndex in schema fpml-ird-5-10_xsd4 Drilldown into fixedRate in schema fpml-ird-5-10_xsd4 Drilldown into notional in schema fpml-ird-5-10_xsd4 Drilldown into dayCountFraction in schema fpml-ird-5-10_xsd4 Drilldown into adjustedTerminationDate in schema fpml-ird-5-10_xsd4 Drilldown into adjustedEffectiveDate in schema fpml-ird-5-10_xsd4 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into Fra in schema fpml-ird-5-10_xsd4XSD Diagram of fra in schema fpml-ird-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fra" type="Fra" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A forward rate agreement product definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
adjustedEffectiveDate nsF:adjustedEffectiveDate (1) (1)
adjustedTerminationDate nsF:adjustedTerminationDate (1) (1)
dayCountFraction nsF:dayCountFraction (1) (1)
notional nsF:notional (1) (1)
fixedRate nsF:fixedRate (1) (1)
floatingRateIndex nsF:floatingRateIndex (1) (1)
indexTenor nsF:indexTenor (1) unbounded
fraDiscounting nsF:fraDiscounting 0 (1)
additionalPayment nsF:additionalPayment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:product
