Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: Events.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-business-events-5-4.xsd
Documentation:
Choice between a trade and a post-trade event.

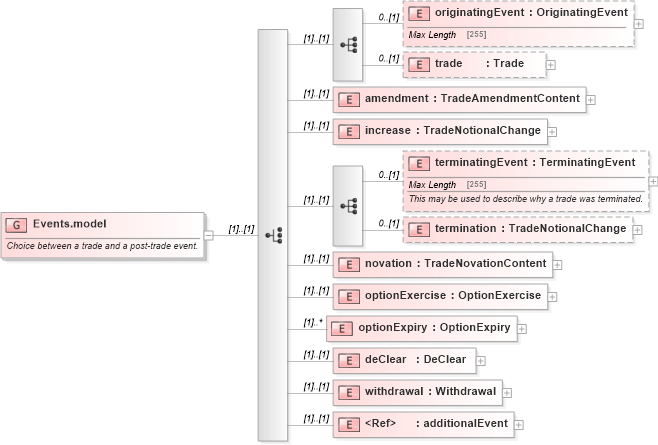

Collapse XSD Schema Diagram:
Drilldown into additionalEvent in schema fpml-business-events-5-4_xsd Drilldown into withdrawal in schema fpml-business-events-5-4_xsd Drilldown into deClear in schema fpml-business-events-5-4_xsd Drilldown into optionExpiry in schema fpml-business-events-5-4_xsd Drilldown into optionExercise in schema fpml-business-events-5-4_xsd Drilldown into novation in schema fpml-business-events-5-4_xsd Drilldown into termination in schema fpml-business-events-5-4_xsd Drilldown into terminatingEvent in schema fpml-business-events-5-4_xsd Drilldown into increase in schema fpml-business-events-5-4_xsd Drilldown into amendment in schema fpml-business-events-5-4_xsd Drilldown into trade in schema fpml-business-events-5-4_xsd Drilldown into originatingEvent in schema fpml-business-events-5-4_xsdXSD Diagram of Events.model in schema fpml-business-events-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="Events.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Choice between a trade and a post-trade event.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:sequence>
            <xsd:element name="originatingEvent" type="OriginatingEvent" minOccurs="0" />
            <xsd:element name="trade" type="Trade" minOccurs="0">
            </xsd:element>
        </xsd:sequence>
        <xsd:element name="amendment" type="TradeAmendmentContent" />
        <xsd:element name="increase" type="TradeNotionalChange" />
        <xsd:sequence>
            <xsd:element name="terminatingEvent" type="TerminatingEvent" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">This may be used to describe why a trade was terminated.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="termination" type="TradeNotionalChange" minOccurs="0">
            </xsd:element>
        </xsd:sequence>
        <xsd:element name="novation" type="TradeNovationContent" />
        <xsd:element name="optionExercise" type="OptionExercise">
        </xsd:element>
        <xsd:element name="optionExpiry" type="OptionExpiry" maxOccurs="unbounded">
        </xsd:element>
        <xsd:element name="deClear" type="DeClear">
        </xsd:element>
        <xsd:element name="withdrawal" type="Withdrawal">
        </xsd:element>
        <xsd:element ref="additionalEvent">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The additionalEvent element is an extension/substitution point to customize FpML and add additional events.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
originatingEvent nsA:originatingEvent 0 (1)
trade nsA:trade 0 (1)
amendment nsA:amendment (1) (1)
increase nsA:increase (1) (1)
terminatingEvent nsA:terminatingEvent 0 (1)
termination nsA:termination 0 (1)
novation nsA:novation (1) (1)
optionExercise nsA:optionExercise (1) (1)
optionExpiry nsA:optionExpiry (1) unbounded
deClear nsA:deClear (1) (1)
withdrawal nsA:withdrawal (1) (1)
additionalEvent nsA:additionalEvent (1) (1)
