Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractGeneralDerivedCRSType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateReferenceSystemType
Containing Schema: coordinateReferenceSystems.xsd
Abstract True
Documentation:
A coordinate reference system that is defined by its coordinate conversion from another coordinate reference system (not by a datum). This abstract complexType shall not be used, extended, or restricted, in an Application Schema, to define a concrete subtype with a meaning equivalent to a concrete subtype specified in this document.

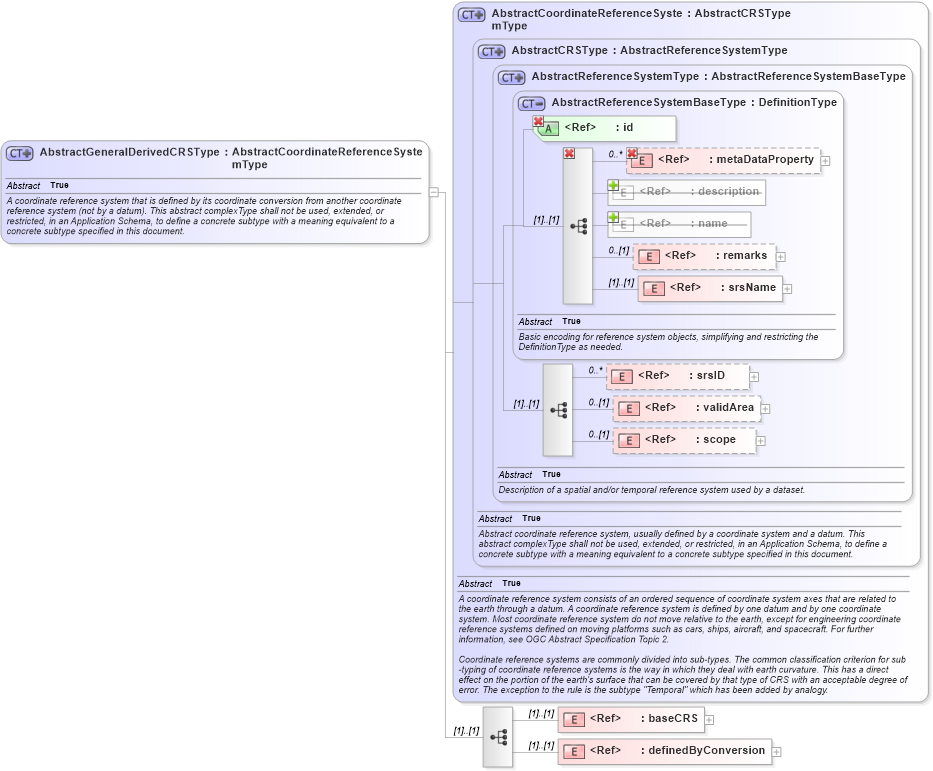

Collapse XSD Schema Diagram:
Drilldown into definedByConversion in schema coordinatereferencesystems_xsd Drilldown into baseCRS in schema coordinatereferencesystems_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into validArea in schema referencesystems_xsd Drilldown into srsID in schema referencesystems_xsd Drilldown into srsName in schema referencesystems_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractReferenceSystemBaseType in schema referencesystems_xsd Drilldown into AbstractReferenceSystemType in schema referencesystems_xsd Drilldown into AbstractCRSType in schema referencesystems_xsd Drilldown into AbstractCoordinateReferenceSystemType in schema coordinatereferencesystems_xsdXSD Diagram of AbstractGeneralDerivedCRSType in schema coordinatereferencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractGeneralDerivedCRSType" abstract="true">
    <annotation>
        <documentation>A coordinate reference system that is defined by its coordinate conversion from another coordinate reference system (not by a datum). This abstract complexType shall not be used, extended, or restricted, in an Application Schema, to define a concrete subtype with a meaning equivalent to a concrete subtype specified in this document. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoordinateReferenceSystemType">
            <sequence>
                <element ref="gml:baseCRS" />
                <element ref="gml:definedByConversion" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
remarks gml:remarks 0 (1)
srsName gml:srsName (1) (1)
srsID gml:srsID 0 unbounded
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
baseCRS gml:baseCRS (1) (1)
definedByConversion gml:definedByConversion (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:_GeneralDerivedCRSgml:DerivedCRSType, gml:ProjectedCRSType,
