Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractReferenceSystemType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractReferenceSystemBaseType
Containing Schema: referenceSystems.xsd
Abstract True
Documentation:
Description of a spatial and/or temporal reference system used by a dataset.

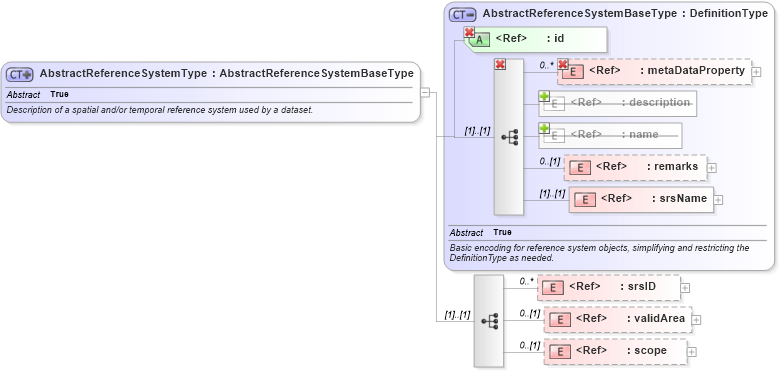

Collapse XSD Schema Diagram:
Drilldown into scope in schema referencesystems_xsd Drilldown into validArea in schema referencesystems_xsd Drilldown into srsID in schema referencesystems_xsd Drilldown into srsName in schema referencesystems_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractReferenceSystemBaseType in schema referencesystems_xsdXSD Diagram of AbstractReferenceSystemType in schema referencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractReferenceSystemType" abstract="true">
    <annotation>
        <documentation>Description of a spatial and/or temporal reference system used by a dataset. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractReferenceSystemBaseType">
            <sequence>
                <element ref="gml:srsID" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:validArea" minOccurs="0" />
                <element ref="gml:scope" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
remarks gml:remarks 0 (1)
srsName gml:srsName (1) (1)
srsID gml:srsID 0 unbounded
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:_ReferenceSystemgml:AbstractCRSType,
