Definition Type: ComplexType
Name: AbstractOperationType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractSingleOperationType
Containing Schema: coordinateOperations.xsd
Abstract True
Documentation:
A parameterized mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. This coordinate operation uses an operation method, usually with associated parameter values. However, operation methods and parameters are directly associated with concrete subtypes, not with this abstract type. This abstract complexType shall not be directly used, extended, or restricted in a compliant Application Schema.

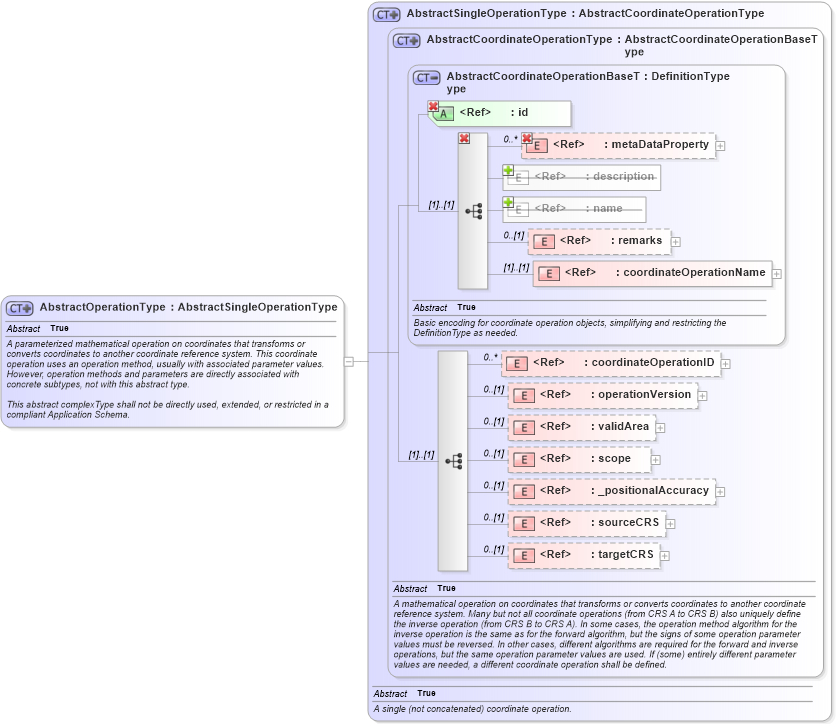

Collapse XSD Schema Diagram:
Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into _positionalAccuracy in schema dataquality_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into validArea in schema referencesystems_xsd Drilldown into operationVersion in schema coordinateoperations_xsd Drilldown into coordinateOperationID in schema coordinateoperations_xsd Drilldown into coordinateOperationName in schema coordinateoperations_xsd Drilldown into remarks in schema referencesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCoordinateOperationBaseType in schema coordinateoperations_xsd Drilldown into AbstractCoordinateOperationType in schema coordinateoperations_xsd Drilldown into AbstractSingleOperationType in schema coordinateoperations_xsdXSD Diagram of AbstractOperationType in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractOperationType" abstract="true">
    <annotation>
        <documentation>A parameterized mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. This coordinate operation uses an operation method, usually with associated parameter values. However, operation methods and parameters are directly associated with concrete subtypes, not with this abstract type.

This abstract complexType shall not be directly used, extended, or restricted in a compliant Application Schema. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractSingleOperationType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
remarks gml:remarks 0 (1)
coordinateOperationName gml:coordinateOperationName (1) (1)
coordinateOperationID gml:coordinateOperationID 0 unbounded
operationVersion gml:operationVersion 0 (1)
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
_positionalAccuracy gml:_positionalAccuracy 0 (1)
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:_Operationgml:AbstractGeneralConversionType, gml:AbstractGeneralTransformationType,
