Documentation for Geography Markup Language
Definition Type: ComplexType
Name: LineStringType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCurveType
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
A LineString is a special curve that consists of a single segment with linear interpolation. It is defined by two or more coordinate tuples, with linear interpolation between them. It is backwards compatible with the LineString of GML 2, GM_LineString of ISO 19107 is implemented by LineStringSegment.

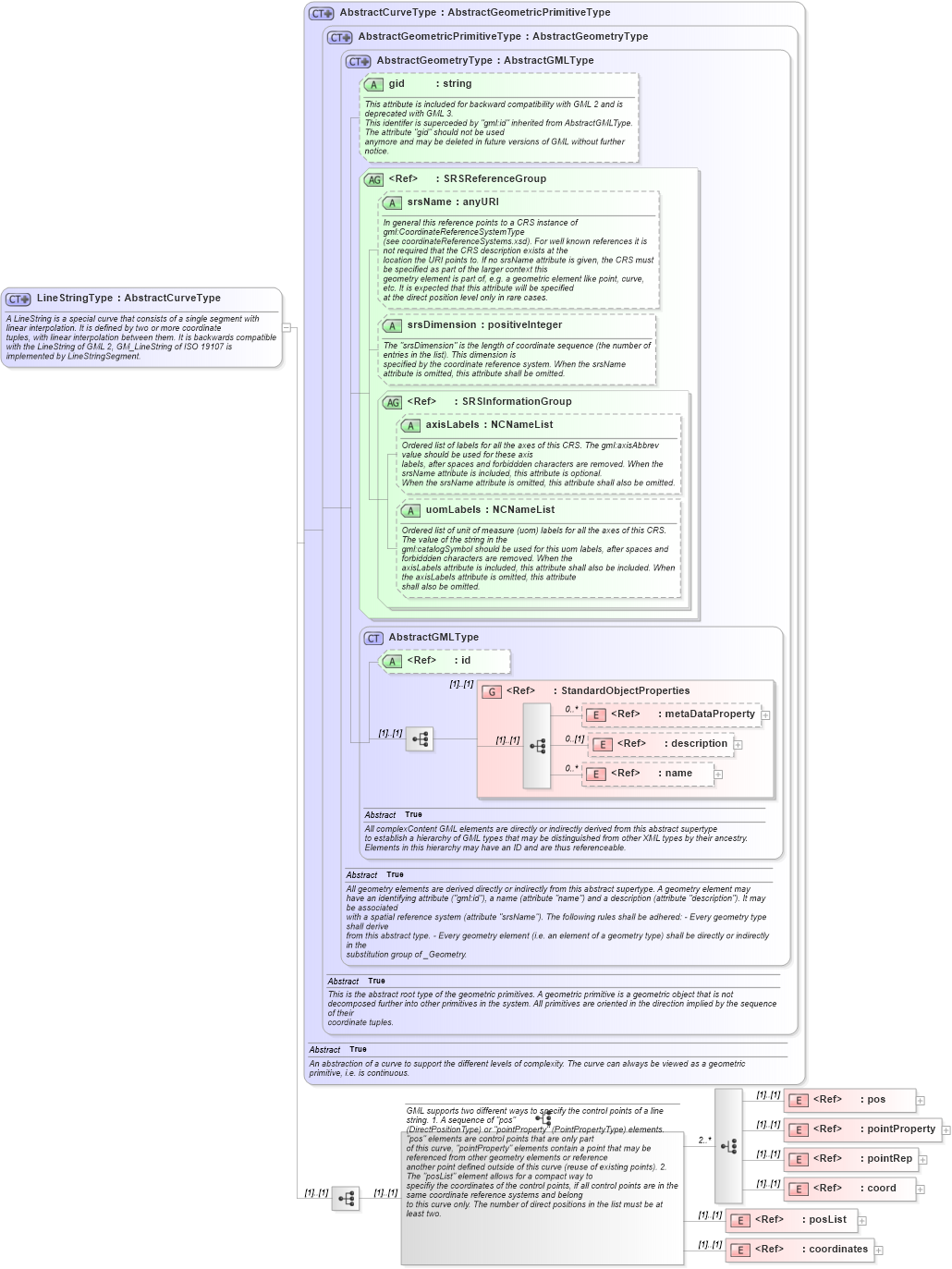

Collapse XSD Schema Diagram:
Drilldown into coordinates in schema geometrybasic0d1d_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into coord in schema geometrybasic0d1d_xsd Drilldown into pointRep in schema geometrybasic0d1d_xsd Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometricPrimitiveType in schema geometrybasic0d1d_xsd Drilldown into AbstractCurveType in schema geometrybasic0d1d_xsdXSD Diagram of LineStringType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="LineStringType">
    <annotation>
        <documentation>A LineString is a special curve that consists of a single segment with linear interpolation. It is defined by two or more coordinate
			tuples, with linear interpolation between them. It is backwards compatible with the LineString of GML 2, GM_LineString of ISO 19107 is
			implemented by LineStringSegment.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCurveType">
            <sequence>
                <choice>
                    <annotation>
                        <documentation>GML supports two different ways to specify the control points of a line string. 1. A sequence of "pos"
							(DirectPositionType) or "pointProperty" (PointPropertyType) elements. "pos" elements are control points that are only part
							of this curve, "pointProperty" elements contain a point that may be referenced from other geometry elements or reference
							another point defined outside of this curve (reuse of existing points). 2. The "posList" element allows for a compact way to
							specifiy the coordinates of the control points, if all control points are in the same coordinate reference systems and belong
							to this curve only. The number of direct positions in the list must be at least two.</documentation>
                    </annotation>
                    <choice minOccurs="2" maxOccurs="unbounded">
                        <element ref="gml:pos" />
                        <element ref="gml:pointProperty" />
                        <element ref="gml:pointRep">
                            <annotation>
                                <documentation>Deprecated with GML version 3.1.0. Use "pointProperty" instead. Included for backwards compatibility
									with GML 3.0.0.</documentation>
                            </annotation>
                        </element>
                        <element ref="gml:coord">
                            <annotation>
                                <documentation>Deprecated with GML version 3.0. Use "pos" instead. The "coord" element is included for backwards
									compatibility with GML 2.</documentation>
                            </annotation>
                        </element>
                    </choice>
                    <element ref="gml:posList" />
                    <element ref="gml:coordinates">
                        <annotation>
                            <documentation>Deprecated with GML version 3.1.0. Use "posList" instead.</documentation>
                        </annotation>
                    </element>
                </choice>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
coord gml:coord (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
srsDimension gml:srsDimension Optional
axisLabels gml:axisLabels Optional
uomLabels gml:uomLabels Optional
Collapse Derivation Tree:
Collapse References:
gml:LineString
