Definition Type: ComplexType
Name: AbstractGeometryType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractGMLType
Containing Schema: geometryBasic0d1d.xsd
Abstract True
Documentation:
All geometry elements are derived directly or indirectly from this abstract supertype. A geometry element may have an identifying attribute ("gml:id"), a name (attribute "name") and a description (attribute "description"). It may be associated with a spatial reference system (attribute "srsName"). The following rules shall be adhered: - Every geometry type shall derive from this abstract type. - Every geometry element (i.e. an element of a geometry type) shall be directly or indirectly in the substitution group of _Geometry.

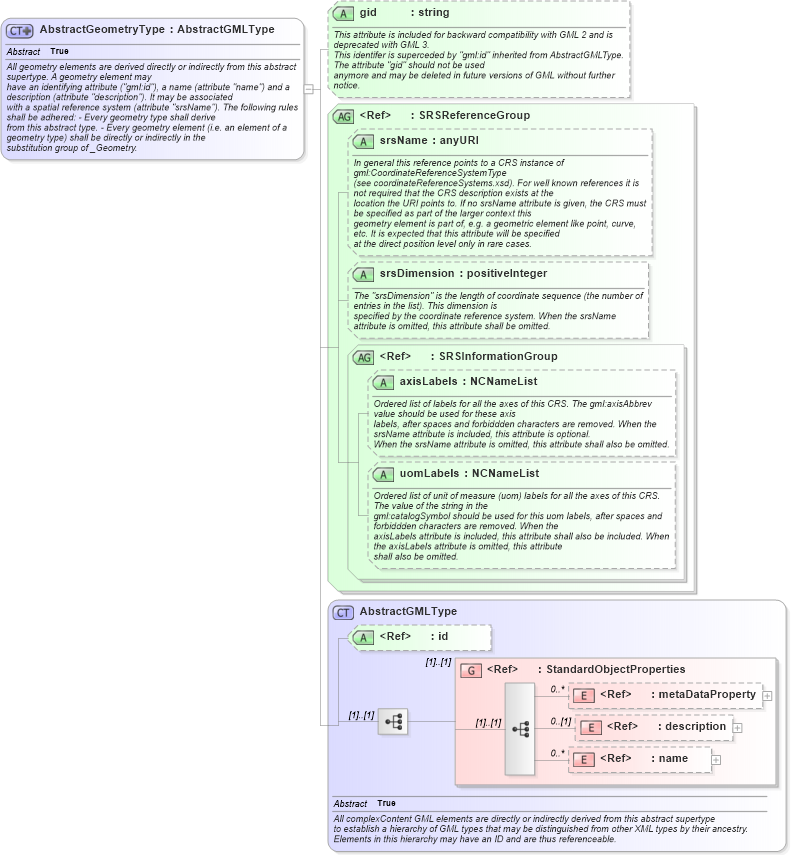

Collapse XSD Schema Diagram:
Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsdXSD Diagram of AbstractGeometryType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractGeometryType" abstract="true">
    <annotation>
        <documentation>All geometry elements are derived directly or indirectly from this abstract supertype. A geometry element may
			have an identifying attribute ("gml:id"), a name (attribute "name") and a description (attribute "description"). It may be associated
			with a spatial reference system (attribute "srsName"). The following rules shall be adhered: - Every geometry type shall derive
			from this abstract type. - Every geometry element (i.e. an element of a geometry type) shall be directly or indirectly in the
			substitution group of _Geometry.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractGMLType">
            <attribute name="gid" type="string" use="optional">
                <annotation>
                    <documentation>This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
						This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
						anymore and may be deleted in future versions of GML without further notice.</documentation>
                </annotation>
            </attribute>
            <attributeGroup ref="gml:SRSReferenceGroup" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
srsDimension gml:srsDimension Optional
axisLabels gml:axisLabels Optional
uomLabels gml:uomLabels Optional
Collapse Derivation Tree:
Collapse References:
gml:_Geometry, gml:_ImplicitGeometrygml:AbstractGeometricAggregateType, gml:AbstractGeometricPrimitiveType, gml:AbstractRingType, gml:GeometricComplexType, gml:GridType,
