Documentation for Geography Markup Language
Definition Type: ComplexType
Name: TriangulatedSurfaceType
Namespace: http://www.opengis.net/gml
Type: gml:SurfaceType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A triangulated surface is a polyhedral surface that is composed only of triangles. There is no restriction on how the triangulation is derived.

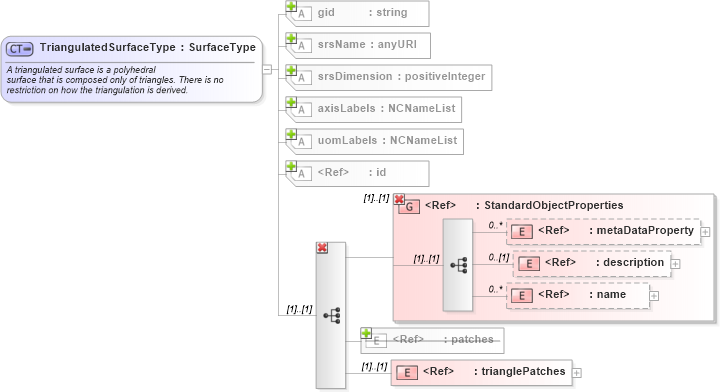

Collapse XSD Schema Diagram:
Drilldown into trianglePatches in schema geometryprimitives_xsd Drilldown into patches in schema geometryprimitives_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into gid in schema geometrybasic0d1d_xsdXSD Diagram of TriangulatedSurfaceType in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="TriangulatedSurfaceType">
    <annotation>
        <documentation>A triangulated surface is a polyhedral
   surface that is composed only of triangles. There is no
   restriction on how the triangulation is derived.</documentation>
    </annotation>
    <complexContent>
        <restriction base="gml:SurfaceType">
            <sequence>
                <group ref="gml:StandardObjectProperties" />
                <element ref="gml:trianglePatches">
                    <annotation>
                        <documentation>This property encapsulates the patches of
      the triangulated surface.</documentation>
                    </annotation>
                </element>
            </sequence>
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
patches gml:patches (1) (1)
trianglePatches gml:trianglePatches (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
gid gml:gid Optional
srsName gml:srsName Optional
srsDimension gml:srsDimension Optional
axisLabels gml:axisLabels Optional
uomLabels gml:uomLabels Optional
Collapse Derivation Tree:
Collapse References:
gml:TinType, gml:TriangulatedSurface
