Documentation for Geography Markup Language
Definition Type: ComplexType
Name: AbstractGeneralTransformationType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCoordinateOperationType
Containing Schema: coordinateOperations.xsd
Abstract True

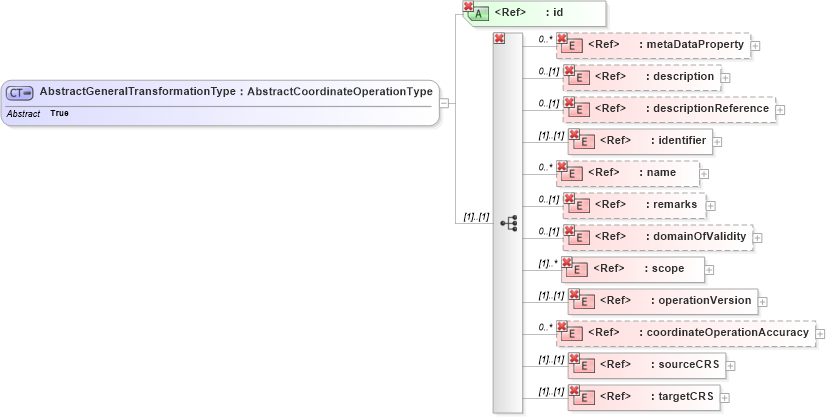

Collapse XSD Schema Diagram:
Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into coordinateOperationAccuracy in schema coordinateoperations_xsd Drilldown into operationVersion in schema coordinateoperations_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into domainOfValidity in schema referencesystems_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into id in schema gmlbase_xsdXSD Diagram of AbstractGeneralTransformationType in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="AbstractGeneralTransformationType" abstract="true">
    <complexContent>
        <restriction base="gml:AbstractCoordinateOperationType">
            <sequence>
                <element ref="gml:metaDataProperty" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:description" minOccurs="0" />
                <element ref="gml:descriptionReference" minOccurs="0" />
                <element ref="gml:identifier" />
                <element ref="gml:name" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:remarks" minOccurs="0" />
                <element ref="gml:domainOfValidity" minOccurs="0" />
                <element ref="gml:scope" maxOccurs="unbounded" />
                <element ref="gml:operationVersion" />
                <element ref="gml:coordinateOperationAccuracy" minOccurs="0" maxOccurs="unbounded" />
                <element ref="gml:sourceCRS" />
                <element ref="gml:targetCRS" />
            </sequence>
            <attribute ref="gml:id" use="required" />
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion 0 (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion (1) (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS (1) (1)
targetCRS gml:targetCRS (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeneralTransformationgml:TransformationType,
