Definition Type: Element
Name: Transformation
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TransformationType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:Transformation is a concrete object element derived from gml:GeneralTransformation (13.6.2.13). This concrete object can be used for all operation methods, without using a GML Application Schema that defines operation-method-specialized element names and contents, especially for methods with only one Transformation instance. The parameterValue elements are an unordered list of composition associations to the set of parameter values used by this conversion operation.

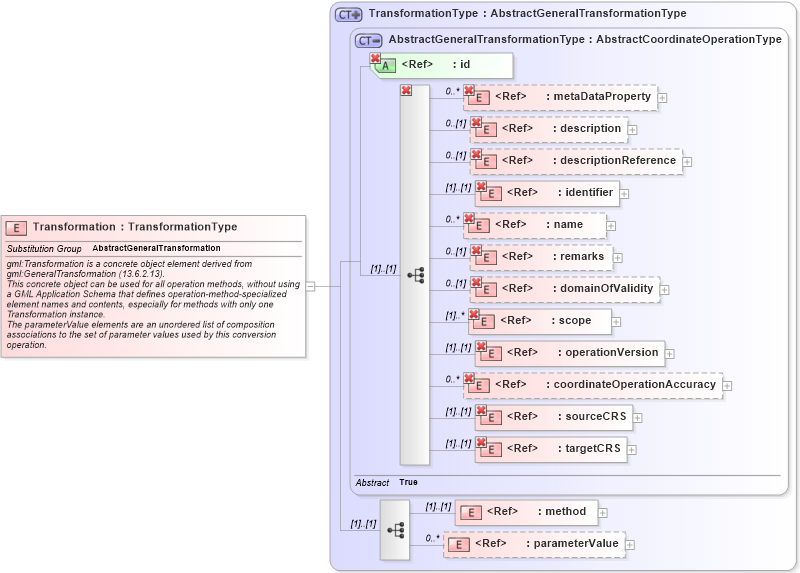

Collapse XSD Schema Diagram:
Drilldown into parameterValue in schema coordinateoperations_xsd Drilldown into method in schema coordinateoperations_xsd Drilldown into targetCRS in schema coordinateoperations_xsd Drilldown into sourceCRS in schema coordinateoperations_xsd Drilldown into coordinateOperationAccuracy in schema coordinateoperations_xsd Drilldown into operationVersion in schema coordinateoperations_xsd Drilldown into scope in schema referencesystems_xsd Drilldown into domainOfValidity in schema referencesystems_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGeneralTransformationType in schema coordinateoperations_xsd Drilldown into TransformationType in schema coordinateoperations_xsdXSD Diagram of Transformation in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="Transformation" type="gml:TransformationType" substitutionGroup="gml:AbstractGeneralTransformation">
    <annotation>
        <documentation>gml:Transformation is a concrete object element derived from gml:GeneralTransformation (13.6.2.13).
This concrete object can be used for all operation methods, without using a GML Application Schema that defines operation-method-specialized element names and contents, especially for methods with only one Transformation instance.
The parameterValue elements are an unordered list of composition associations to the set of parameter values used by this conversion operation.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion 0 (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion (1) (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS (1) (1)
targetCRS gml:targetCRS (1) (1)
method gml:method (1) (1)
parameterValue gml:parameterValue 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeneralTransformation
