Definition Type: ComplexType
Name: AssessmentCatalogType
Namespace: http://www.hr-xml.org/3
Containing Schema: AssessmentCatalog.xsd
Abstract
Documentation:
Assessment Catalog. Details Defines an assessment catalog, which is intended to support discovery of descriptive information about assessments available to a customer and the discovery of "Package IDs" which are necessary to place an order using HR-XML's assessment order specification. A "Package" may consist of one or more assessment instruments. The "Package" is the marketable unit that may be ordered.

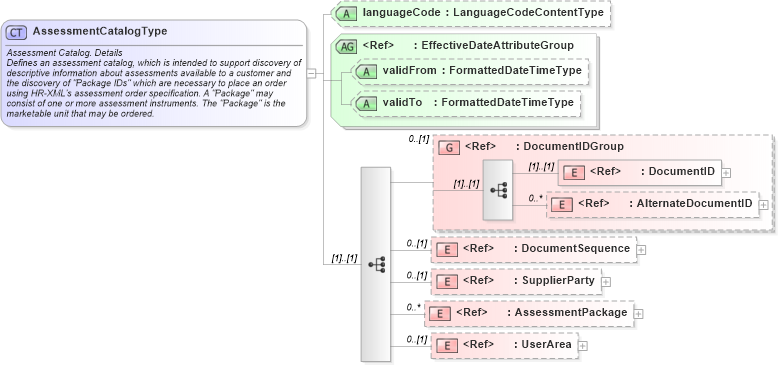

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AssessmentPackage in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema assessmentcatalog_xsdXSD Diagram of AssessmentCatalogType in schema assessmentcatalog_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentCatalogType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Assessment Catalog. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Defines an assessment catalog, which is intended to support discovery of descriptive information about assessments available to a customer and the discovery of "Package IDs" which are necessary to place an order using HR-XML's assessment order specification. A "Package" may consist of one or more assessment instruments. The "Package" is the marketable unit that may be ordered.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="SupplierParty" minOccurs="0" />
        <xsd:element ref="AssessmentPackage" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
AssessmentPackage nsA:AssessmentPackage 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:AssessmentCatalog
