Definition Type: ComplexType
Name: AssessmentReportType
Namespace: http://www.hr-xml.org/3
Containing Schema: AssessmentReport.xsd
Abstract
Documentation:
Assessment Report. Details A document carrying information about an assessment result. Provides scores and other details to fulfill or respond to an assessment order. AssessmentStatusDetails is part of the data model so that tests, whether completed or pending, can be reported upon.

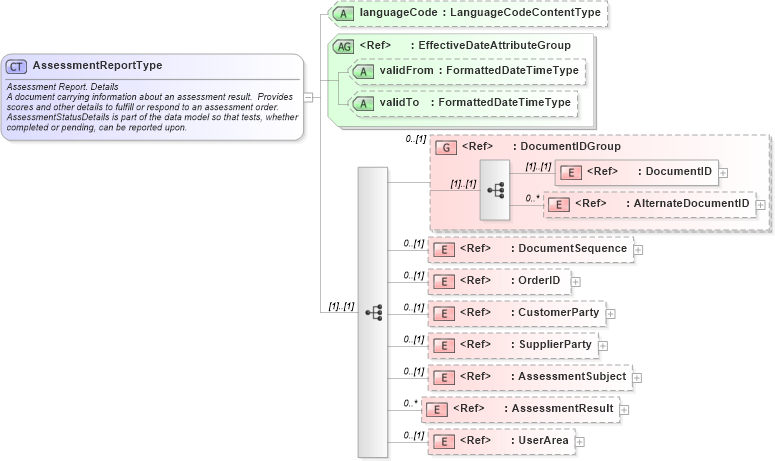

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AssessmentResult in schema components_xsd Drilldown into AssessmentSubject in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into OrderID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema assessmentreport_xsdXSD Diagram of AssessmentReportType in schema assessmentreport_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentReportType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Assessment Report. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A document carrying information about an assessment result.  Provides scores and other details to fulfill or respond to an assessment order. AssessmentStatusDetails is part of the data model so that tests, whether completed or pending, can be reported upon. </ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="OrderID" minOccurs="0" />
        <xsd:element ref="CustomerParty" minOccurs="0" />
        <xsd:element ref="SupplierParty" minOccurs="0" />
        <xsd:element ref="AssessmentSubject" minOccurs="0" />
        <xsd:element ref="AssessmentResult" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
OrderID nsA:OrderID 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
AssessmentSubject nsA:AssessmentSubject 0 (1)
AssessmentResult nsA:AssessmentResult 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:AssessmentReport
