Definition Type: ComplexType
Name: CreditResultType
Namespace: http://www.hr-xml.org/3
Containing Schema: CreditResult.xsd
Abstract
Documentation:
Credit Result. Details Contains information returned from a search from one or more consumer reporting or "credit bureaus." May be information sourced from a single bureau or possibly a report of "merged" results from several bureaus.

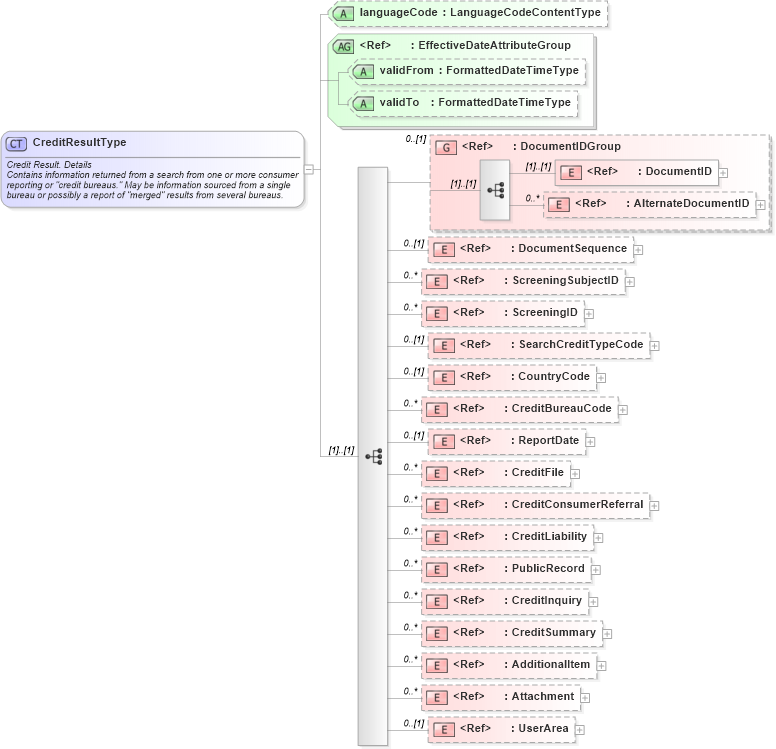

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into CreditSummary in schema creditresult_xsd Drilldown into CreditInquiry in schema creditresult_xsd Drilldown into PublicRecord in schema creditresult_xsd Drilldown into CreditLiability in schema creditresult_xsd Drilldown into CreditConsumerReferral in schema components_xsd Drilldown into CreditFile in schema components_xsd Drilldown into ReportDate in schema fields_xsd Drilldown into CreditBureauCode in schema fields_xsd Drilldown into CountryCode in schema fields_xsd Drilldown into SearchCreditTypeCode in schema fields_xsd Drilldown into ScreeningID in schema fields_xsd Drilldown into ScreeningSubjectID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema creditresult_xsdXSD Diagram of CreditResultType in schema creditresult_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CreditResultType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Credit Result. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains information returned from a search from one or more consumer reporting or "credit bureaus." May be information sourced from a single bureau or possibly a report of "merged" results from several bureaus.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="ScreeningSubjectID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ScreeningID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SearchCreditTypeCode" minOccurs="0" />
        <xsd:element ref="CountryCode" minOccurs="0" />
        <xsd:element ref="CreditBureauCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ReportDate" minOccurs="0" />
        <xsd:element ref="CreditFile" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditConsumerReferral" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditLiability" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PublicRecord" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditInquiry" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditSummary" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
ScreeningSubjectID nsA:ScreeningSubjectID 0 unbounded
ScreeningID nsA:ScreeningID 0 unbounded
SearchCreditTypeCode nsA:SearchCreditTypeCode 0 (1)
CountryCode nsA:CountryCode 0 (1)
CreditBureauCode nsA:CreditBureauCode 0 unbounded
ReportDate nsA:ReportDate 0 (1)
CreditFile nsA:CreditFile 0 unbounded
CreditConsumerReferral nsA:CreditConsumerReferral 0 unbounded
CreditLiability nsA:CreditLiability 0 unbounded
PublicRecord nsA:PublicRecord 0 unbounded
CreditInquiry nsA:CreditInquiry 0 unbounded
CreditSummary nsA:CreditSummary 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:CreditReportTypensA:CreditResult,
