Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: EPMRaterPanel
Namespace: http://www.hr-xml.org/3
Type: nsA:EPMRaterPanelType
Containing Schema: EPMRaterPanel.xsd
Abstract

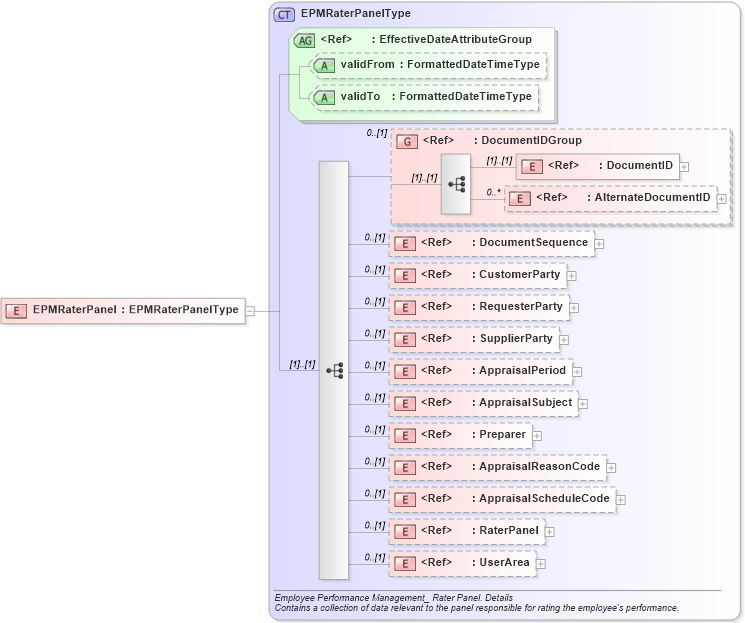

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RaterPanel in schema components_xsd Drilldown into AppraisalScheduleCode in schema fields_xsd Drilldown into AppraisalReasonCode in schema fields_xsd Drilldown into Preparer in schema components_xsd Drilldown into AppraisalSubject in schema components_xsd Drilldown into AppraisalPeriod in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into RequesterParty in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into EPMRaterPanelType in schema epmraterpanel_xsdXSD Diagram of EPMRaterPanel in schema epmraterpanel_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="EPMRaterPanel" type="EPMRaterPanelType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
RequesterParty nsA:RequesterParty 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
AppraisalPeriod nsA:AppraisalPeriod 0 (1)
AppraisalSubject nsA:AppraisalSubject 0 (1)
Preparer nsA:Preparer 0 (1)
AppraisalReasonCode nsA:AppraisalReasonCode 0 (1)
AppraisalScheduleCode nsA:AppraisalScheduleCode 0 (1)
RaterPanel nsA:RaterPanel 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
