Definition Type: Element
Name: HRMasterData
Namespace: http://www.hr-xml.org/3
Type: nsA:HRMasterDataType
Containing Schema: HRMasterData.xsd
Abstract
Collapse XSD Schema Diagram:

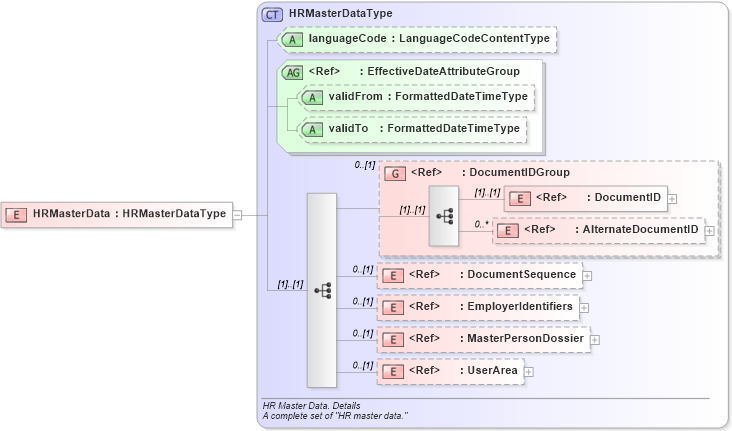

Drilldown into UserArea in schema fields_xsd Drilldown into MasterPersonDossier in schema hrmasterdata_xsd Drilldown into EmployerIdentifiers in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema hrmasterdata_xsd Drilldown into HRMasterDataType in schema hrmasterdata_xsdXSD Diagram of HRMasterData in schema hrmasterdata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="HRMasterData" type="HRMasterDataType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
EmployerIdentifiers nsA:EmployerIdentifiers 0 (1)
MasterPersonDossier nsA:MasterPersonDossier 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
