Definition Type: ComplexType
Name: IndicativeDataType
Namespace: http://www.hr-xml.org/3
Containing Schema: IndicativeData.xsd
Abstract
Documentation:
Indicative Data. Details The set of data describing the relationship between an employer and employee or former employee that is relevant to the provisioning of outsourced benefits and payroll systems. It is "indicative" data in that the target system has business rules and logic to administer the employee's compensation and/or benefits programs based on the data supplied. OED Indicative n. That points out, states, or declares; That indicates, points out, or directs; that hints or suggests; Furnishing indications of; suggestive of.

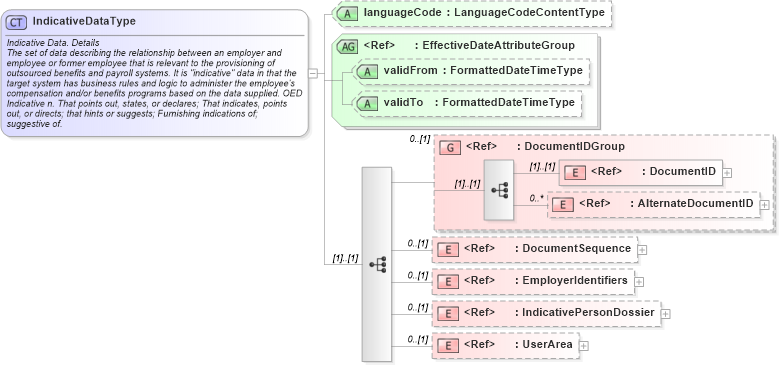

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into IndicativePersonDossier in schema indicativedata_xsd Drilldown into EmployerIdentifiers in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema indicativedata_xsdXSD Diagram of IndicativeDataType in schema indicativedata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndicativeDataType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicative Data. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The set of data describing the relationship between an employer and employee or former employee that is relevant to the provisioning of outsourced benefits and payroll systems. It is "indicative" data in that the target system has business rules and logic to administer the employee's compensation and/or benefits programs based on the data supplied. OED Indicative n. That points out, states, or declares; That indicates, points out, or directs; that hints or suggests; Furnishing indications of; suggestive of.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="EmployerIdentifiers" minOccurs="0" />
        <xsd:element ref="IndicativePersonDossier" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
EmployerIdentifiers nsA:EmployerIdentifiers 0 (1)
IndicativePersonDossier nsA:IndicativePersonDossier 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:IndicativeData
