Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: MasterPersonType
Namespace: http://www.hr-xml.org/3
Type: nsA:PersonBaseType
Containing Schema: Components.xsd
Abstract

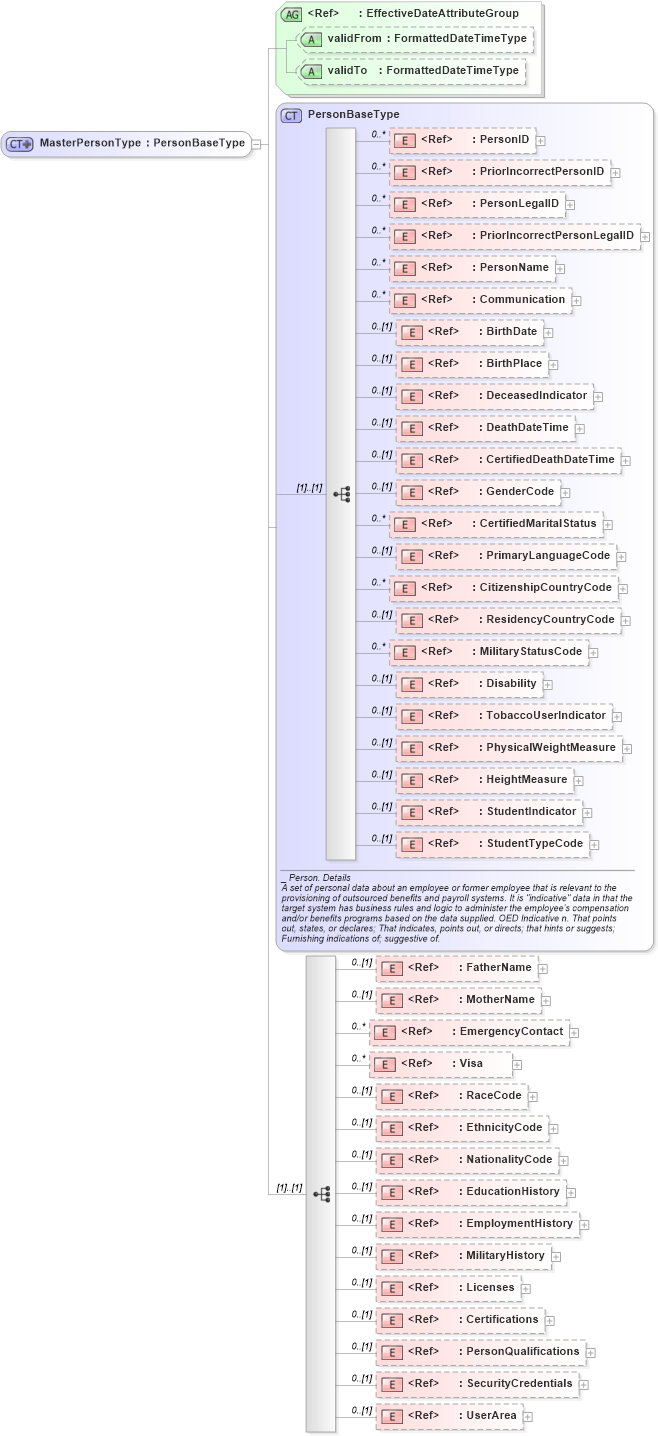

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SecurityCredentials in schema components_xsd Drilldown into PersonQualifications in schema components_xsd Drilldown into Certifications in schema components_xsd Drilldown into Licenses in schema components_xsd Drilldown into MilitaryHistory in schema components_xsd Drilldown into EmploymentHistory in schema components_xsd Drilldown into EducationHistory in schema components_xsd Drilldown into NationalityCode in schema fields_xsd Drilldown into EthnicityCode in schema fields_xsd Drilldown into RaceCode in schema fields_xsd Drilldown into Visa in schema components_xsd Drilldown into EmergencyContact in schema components_xsd Drilldown into MotherName in schema components_xsd Drilldown into FatherName in schema components_xsd Drilldown into StudentTypeCode in schema fields_xsd Drilldown into StudentIndicator in schema fields_xsd Drilldown into HeightMeasure in schema fields_xsd1 Drilldown into PhysicalWeightMeasure in schema fields_xsd Drilldown into TobaccoUserIndicator in schema fields_xsd Drilldown into Disability in schema components_xsd Drilldown into MilitaryStatusCode in schema fields_xsd Drilldown into ResidencyCountryCode in schema fields_xsd Drilldown into CitizenshipCountryCode in schema fields_xsd Drilldown into PrimaryLanguageCode in schema fields_xsd Drilldown into CertifiedMaritalStatus in schema components_xsd Drilldown into GenderCode in schema fields_xsd Drilldown into CertifiedDeathDateTime in schema fields_xsd Drilldown into DeathDateTime in schema fields_xsd Drilldown into DeceasedIndicator in schema fields_xsd Drilldown into BirthPlace in schema components_xsd Drilldown into BirthDate in schema fields_xsd Drilldown into Communication in schema components_xsd Drilldown into PersonName in schema components_xsd Drilldown into PriorIncorrectPersonLegalID in schema fields_xsd Drilldown into PersonLegalID in schema fields_xsd Drilldown into PriorIncorrectPersonID in schema fields_xsd Drilldown into PersonID in schema fields_xsd Drilldown into PersonBaseType in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of MasterPersonType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="MasterPersonType">
    <xsd:complexContent>
        <xsd:extension base="PersonBaseType">
            <xsd:sequence>
                <xsd:element ref="FatherName" minOccurs="0" />
                <xsd:element ref="MotherName" minOccurs="0" />
                <xsd:element ref="EmergencyContact" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Visa" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="RaceCode" minOccurs="0" />
                <xsd:element ref="EthnicityCode" minOccurs="0" />
                <xsd:element ref="NationalityCode" minOccurs="0" />
                <xsd:element ref="EducationHistory" minOccurs="0" />
                <xsd:element ref="EmploymentHistory" minOccurs="0" />
                <xsd:element ref="MilitaryHistory" minOccurs="0" />
                <xsd:element ref="Licenses" minOccurs="0" />
                <xsd:element ref="Certifications" minOccurs="0" />
                <xsd:element ref="PersonQualifications" minOccurs="0" />
                <xsd:element ref="SecurityCredentials" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
            <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonID nsA:PersonID 0 unbounded
PriorIncorrectPersonID nsA:PriorIncorrectPersonID 0 unbounded
PersonLegalID nsA:PersonLegalID 0 unbounded
PriorIncorrectPersonLegalID nsA:PriorIncorrectPersonLegalID 0 unbounded
PersonName nsA:PersonName 0 unbounded
Communication nsA:Communication 0 unbounded
BirthDate nsA:BirthDate 0 (1)
BirthPlace nsA:BirthPlace 0 (1)
DeceasedIndicator nsA:DeceasedIndicator 0 (1)
DeathDateTime nsA:DeathDateTime 0 (1)
CertifiedDeathDateTime nsA:CertifiedDeathDateTime 0 (1)
GenderCode nsA:GenderCode 0 (1)
CertifiedMaritalStatus nsA:CertifiedMaritalStatus 0 unbounded
PrimaryLanguageCode nsA:PrimaryLanguageCode 0 (1)
CitizenshipCountryCode nsA:CitizenshipCountryCode 0 unbounded
ResidencyCountryCode nsA:ResidencyCountryCode 0 (1)
MilitaryStatusCode nsA:MilitaryStatusCode 0 unbounded
Disability nsA:Disability 0 (1)
TobaccoUserIndicator nsA:TobaccoUserIndicator 0 (1)
PhysicalWeightMeasure nsA:PhysicalWeightMeasure 0 (1)
HeightMeasure oa:HeightMeasure 0 (1)
StudentIndicator nsA:StudentIndicator 0 (1)
StudentTypeCode nsA:StudentTypeCode 0 (1)
FatherName nsA:FatherName 0 (1)
MotherName nsA:MotherName 0 (1)
EmergencyContact nsA:EmergencyContact 0 unbounded
Visa nsA:Visa 0 unbounded
RaceCode nsA:RaceCode 0 (1)
EthnicityCode nsA:EthnicityCode 0 (1)
NationalityCode nsA:NationalityCode 0 (1)
EducationHistory nsA:EducationHistory 0 (1)
EmploymentHistory nsA:EmploymentHistory 0 (1)
MilitaryHistory nsA:MilitaryHistory 0 (1)
Licenses nsA:Licenses 0 (1)
Certifications nsA:Certifications 0 (1)
PersonQualifications nsA:PersonQualifications 0 (1)
SecurityCredentials nsA:SecurityCredentials 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:MasterPerson
