Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ObjectivesPlan
Namespace: http://www.hr-xml.org/3
Type: nsA:ObjectivesPlanType
Containing Schema: ObjectivesPlan.xsd
Abstract

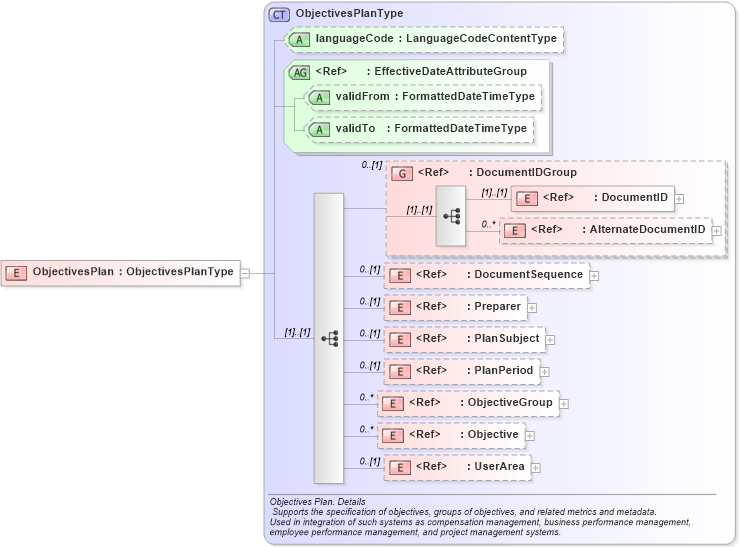

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Objective in schema components_xsd Drilldown into ObjectiveGroup in schema components_xsd Drilldown into PlanPeriod in schema components_xsd Drilldown into PlanSubject in schema components_xsd Drilldown into Preparer in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema objectivesplan_xsd Drilldown into ObjectivesPlanType in schema objectivesplan_xsdXSD Diagram of ObjectivesPlan in schema objectivesplan_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ObjectivesPlan" type="ObjectivesPlanType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
Preparer nsA:Preparer 0 (1)
PlanSubject nsA:PlanSubject 0 (1)
PlanPeriod nsA:PlanPeriod 0 (1)
ObjectiveGroup nsA:ObjectiveGroup 0 unbounded
Objective nsA:Objective 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
