Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: PositionHistory
Namespace: http://www.hr-xml.org/3
Type: nsA:PositionHistoryType
Containing Schema: Components.xsd
Abstract

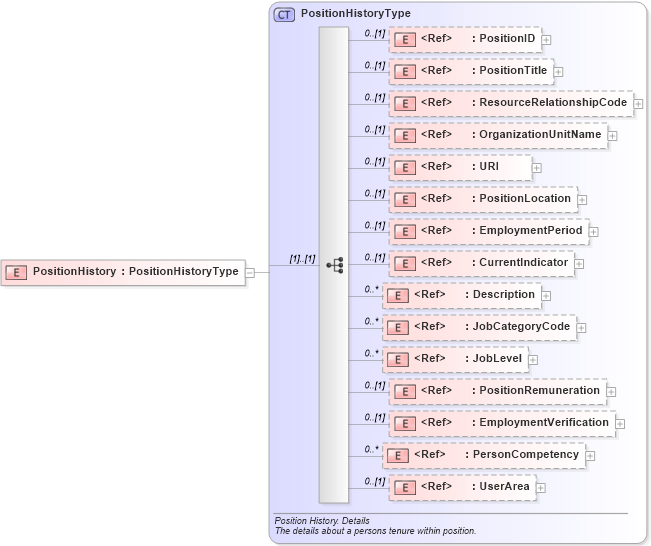

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PersonCompetency in schema components_xsd Drilldown into EmploymentVerification in schema components_xsd Drilldown into PositionRemuneration in schema components_xsd Drilldown into JobLevel in schema components_xsd Drilldown into JobCategoryCode in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into CurrentIndicator in schema fields_xsd Drilldown into EmploymentPeriod in schema components_xsd Drilldown into PositionLocation in schema components_xsd Drilldown into URI in schema fields_xsd1 Drilldown into OrganizationUnitName in schema fields_xsd Drilldown into ResourceRelationshipCode in schema fields_xsd Drilldown into PositionTitle in schema fields_xsd Drilldown into PositionID in schema fields_xsd Drilldown into PositionHistoryType in schema components_xsdXSD Diagram of PositionHistory in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="PositionHistory" type="PositionHistoryType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PositionID nsA:PositionID 0 (1)
PositionTitle nsA:PositionTitle 0 (1)
ResourceRelationshipCode nsA:ResourceRelationshipCode 0 (1)
OrganizationUnitName nsA:OrganizationUnitName 0 (1)
URI oa:URI 0 (1)
PositionLocation nsA:PositionLocation 0 (1)
EmploymentPeriod nsA:EmploymentPeriod 0 (1)
CurrentIndicator nsA:CurrentIndicator 0 (1)
Description oa:Description 0 unbounded
JobCategoryCode nsA:JobCategoryCode 0 unbounded
JobLevel nsA:JobLevel 0 unbounded
PositionRemuneration nsA:PositionRemuneration 0 (1)
EmploymentVerification nsA:EmploymentVerification 0 (1)
PersonCompetency nsA:PersonCompetency 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
