Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PositionHistoryType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Position History. Details The details about a persons tenure within position.

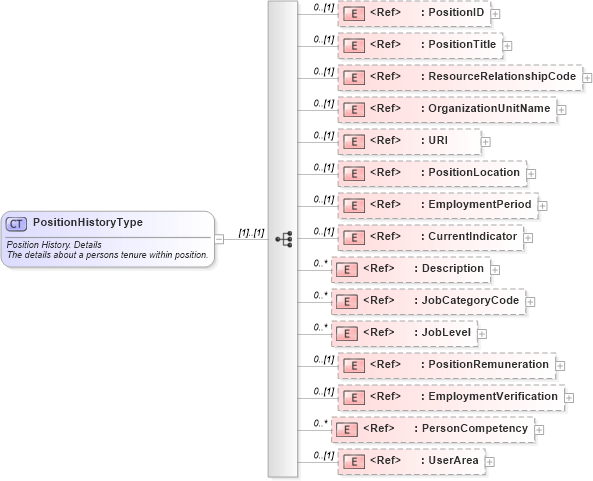

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PersonCompetency in schema components_xsd Drilldown into EmploymentVerification in schema components_xsd Drilldown into PositionRemuneration in schema components_xsd Drilldown into JobLevel in schema components_xsd Drilldown into JobCategoryCode in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into CurrentIndicator in schema fields_xsd Drilldown into EmploymentPeriod in schema components_xsd Drilldown into PositionLocation in schema components_xsd Drilldown into URI in schema fields_xsd1 Drilldown into OrganizationUnitName in schema fields_xsd Drilldown into ResourceRelationshipCode in schema fields_xsd Drilldown into PositionTitle in schema fields_xsd Drilldown into PositionID in schema fields_xsdXSD Diagram of PositionHistoryType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PositionHistoryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Position History. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The details about a persons tenure within position. </ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="PositionID" minOccurs="0" />
        <xsd:element ref="PositionTitle" minOccurs="0" />
        <xsd:element ref="ResourceRelationshipCode" minOccurs="0" />
        <xsd:element ref="OrganizationUnitName" minOccurs="0" />
        <xsd:element ref="oa:URI" minOccurs="0" />
        <xsd:element ref="PositionLocation" minOccurs="0" />
        <xsd:element ref="EmploymentPeriod" minOccurs="0" />
        <xsd:element ref="CurrentIndicator" minOccurs="0" />
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="JobCategoryCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="JobLevel" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PositionRemuneration" minOccurs="0" />
        <xsd:element ref="EmploymentVerification" minOccurs="0" />
        <xsd:element ref="PersonCompetency" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PositionID nsA:PositionID 0 (1)
PositionTitle nsA:PositionTitle 0 (1)
ResourceRelationshipCode nsA:ResourceRelationshipCode 0 (1)
OrganizationUnitName nsA:OrganizationUnitName 0 (1)
URI oa:URI 0 (1)
PositionLocation nsA:PositionLocation 0 (1)
EmploymentPeriod nsA:EmploymentPeriod 0 (1)
CurrentIndicator nsA:CurrentIndicator 0 (1)
Description oa:Description 0 unbounded
JobCategoryCode nsA:JobCategoryCode 0 unbounded
JobLevel nsA:JobLevel 0 unbounded
PositionRemuneration nsA:PositionRemuneration 0 (1)
EmploymentVerification nsA:EmploymentVerification 0 (1)
PersonCompetency nsA:PersonCompetency 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PositionHistory
