Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: StaffingOrderType
Namespace: http://www.hr-xml.org/3
Containing Schema: StaffingOrder.xsd
Abstract
Documentation:
Staffing Order. Details Contains a set of information necessary to place and manage an order with a staffng supplier.

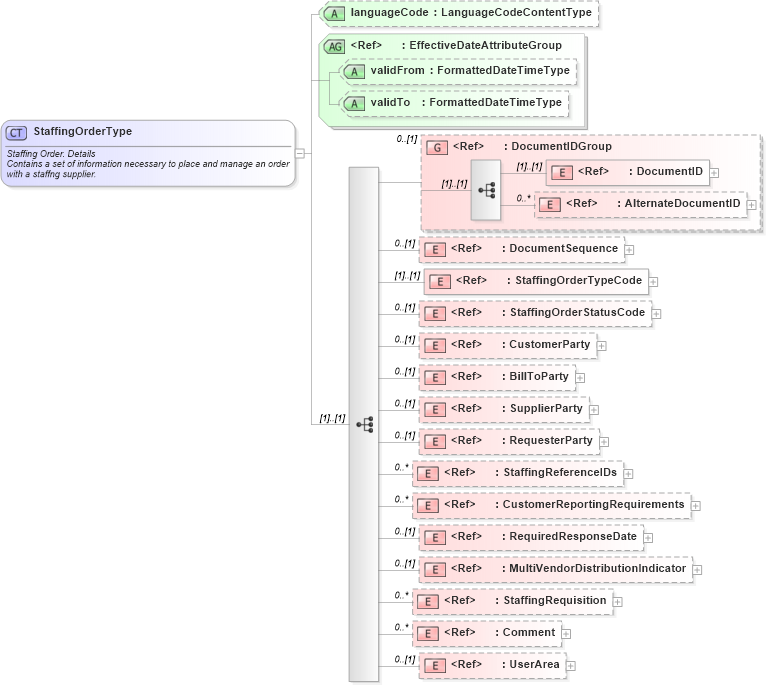

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into StaffingRequisition in schema components_xsd Drilldown into MultiVendorDistributionIndicator in schema fields_xsd Drilldown into RequiredResponseDate in schema fields_xsd Drilldown into CustomerReportingRequirements in schema components_xsd Drilldown into StaffingReferenceIDs in schema components_xsd Drilldown into RequesterParty in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into BillToParty in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into StaffingOrderStatusCode in schema fields_xsd Drilldown into StaffingOrderTypeCode in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema staffingorder_xsdXSD Diagram of StaffingOrderType in schema staffingorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StaffingOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Staffing Order. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains a set of information necessary to place and manage an order with a staffng supplier.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="StaffingOrderTypeCode" />
        <xsd:element ref="StaffingOrderStatusCode" minOccurs="0" />
        <xsd:element ref="CustomerParty" minOccurs="0" />
        <xsd:element ref="BillToParty" minOccurs="0" />
        <xsd:element ref="SupplierParty" minOccurs="0" />
        <xsd:element ref="RequesterParty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This typically would be an intermediary system, such as a VMS system.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="StaffingReferenceIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CustomerReportingRequirements" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RequiredResponseDate" minOccurs="0" />
        <xsd:element ref="MultiVendorDistributionIndicator" minOccurs="0" />
        <xsd:element ref="StaffingRequisition" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
StaffingOrderTypeCode nsA:StaffingOrderTypeCode (1) (1)
StaffingOrderStatusCode nsA:StaffingOrderStatusCode 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
BillToParty nsA:BillToParty 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
RequesterParty nsA:RequesterParty 0 (1)
StaffingReferenceIDs nsA:StaffingReferenceIDs 0 unbounded
CustomerReportingRequirements nsA:CustomerReportingRequirements 0 unbounded
RequiredResponseDate nsA:RequiredResponseDate 0 (1)
MultiVendorDistributionIndicator nsA:MultiVendorDistributionIndicator 0 (1)
StaffingRequisition nsA:StaffingRequisition 0 unbounded
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:StaffingOrder
