Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: StaffingResourceType
Namespace: http://www.hr-xml.org/3
Containing Schema: StaffingResource.xsd
Abstract
Documentation:
Staffing Resource. Details Contains information relating to a person proposed, or with which a staffing customer has contracted, to fulfill a staffed position or role.

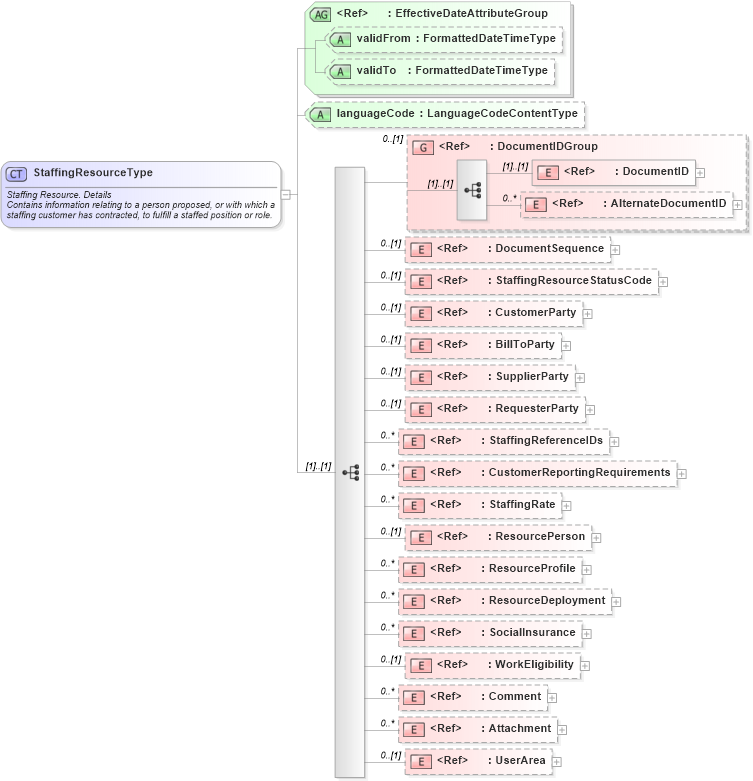

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into Comment in schema fields_xsd Drilldown into WorkEligibility in schema components_xsd Drilldown into SocialInsurance in schema components_xsd Drilldown into ResourceDeployment in schema components_xsd Drilldown into ResourceProfile in schema components_xsd Drilldown into ResourcePerson in schema components_xsd Drilldown into StaffingRate in schema components_xsd Drilldown into CustomerReportingRequirements in schema components_xsd Drilldown into StaffingReferenceIDs in schema components_xsd Drilldown into RequesterParty in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into BillToParty in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into StaffingResourceStatusCode in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into languageCode in schema staffingresource_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of StaffingResourceType in schema staffingresource_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StaffingResourceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Staffing Resource. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains information relating to a person proposed, or with which a staffing customer has contracted, to fulfill a staffed position or role.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="StaffingResourceStatusCode" minOccurs="0" />
        <xsd:element ref="CustomerParty" minOccurs="0" />
        <xsd:element ref="BillToParty" minOccurs="0" />
        <xsd:element ref="SupplierParty" minOccurs="0" />
        <xsd:element ref="RequesterParty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This would be an intermediary systems, such as a VMS system.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="StaffingReferenceIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CustomerReportingRequirements" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="StaffingRate" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ResourcePerson" minOccurs="0" />
        <xsd:element ref="ResourceProfile" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ResourceDeployment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SocialInsurance" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="WorkEligibility" minOccurs="0" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
StaffingResourceStatusCode nsA:StaffingResourceStatusCode 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
BillToParty nsA:BillToParty 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
RequesterParty nsA:RequesterParty 0 (1)
StaffingReferenceIDs nsA:StaffingReferenceIDs 0 unbounded
CustomerReportingRequirements nsA:CustomerReportingRequirements 0 unbounded
StaffingRate nsA:StaffingRate 0 unbounded
ResourcePerson nsA:ResourcePerson 0 (1)
ResourceProfile nsA:ResourceProfile 0 unbounded
ResourceDeployment nsA:ResourceDeployment 0 unbounded
SocialInsurance nsA:SocialInsurance 0 unbounded
WorkEligibility nsA:WorkEligibility 0 (1)
Comment nsA:Comment 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
languageCode nsA:languageCode Optional
Collapse Derivation Tree:
Collapse References:
nsA:StaffingResource
